Extended Data Fig. 1: Biomass composition before and after growth shows selective removal of cellulose and hemicellulose, but also some acid-soluble lignin removal. | Nature Microbiology

Extended Data Fig. 1: Biomass composition before and after growth shows selective removal of cellulose and hemicellulose, but also some acid-soluble lignin removal.

From: Lignin deconstruction by anaerobic fungi

Extended Data Fig. 1: Biomass composition before and after growth shows selective removal of cellulose and hemicellulose, but also some acid-soluble lignin removal.

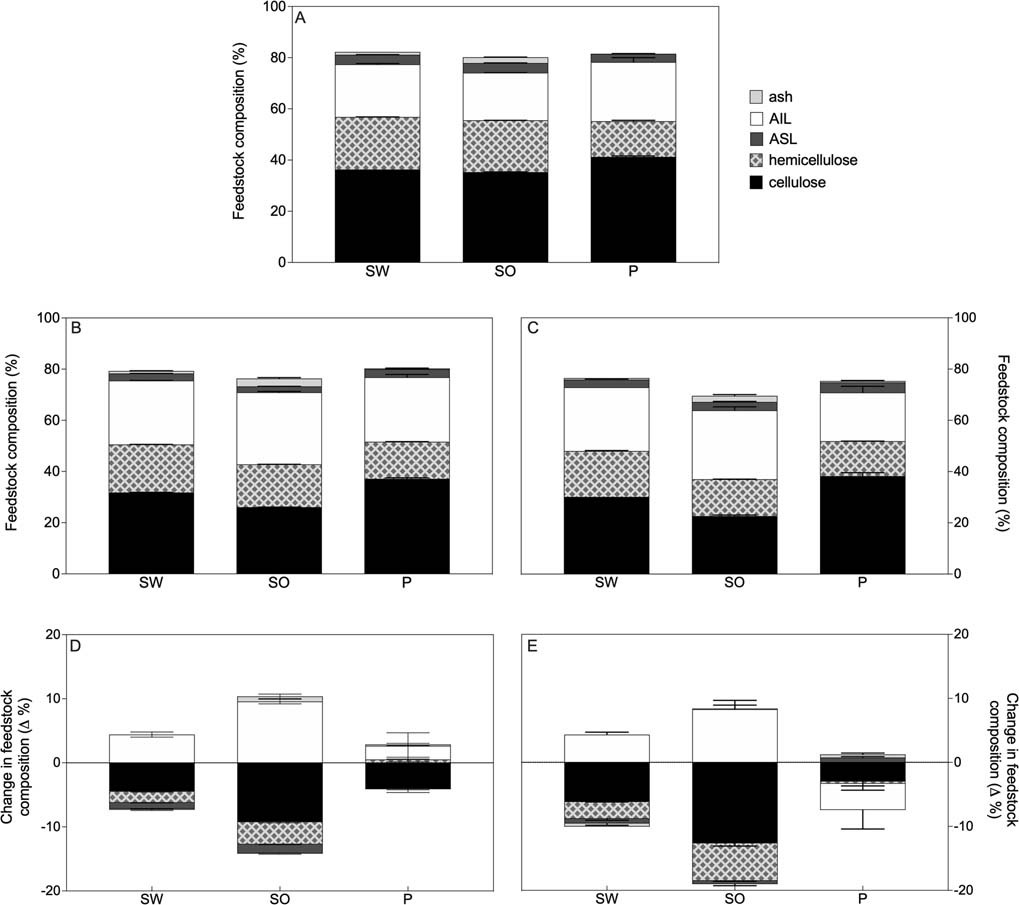

In the figure legend, ASL abbreviates acid-soluble lignin, whereas AIL abbreviates acid-insoluble lignin. Panel A shows the starting composition of sorghum (SO), switchgrass (SW), and poplar P. Panel B represents the composition of SO, SW, and P after the growth of Neocallimastix californiae, and panel C represents the composition of SO, SW, and P after the growth of Anaeromyces robustus. Panel D shows the differences between panel B and panel A, and panel E shows the differences between panel C and panel A. Error bars in all panels represent the standard deviation of biological replicates (n = 3).
