Extended Data Fig. 3: Antibiotic resistome is expanded in micronutrient deficient mice. | Nature Microbiology

Extended Data Fig. 3: Antibiotic resistome is expanded in micronutrient deficient mice.

From: Multiple micronutrient deficiencies in early life cause multi-kingdom alterations in the gut microbiome and intrinsic antibiotic resistance genes in mice

Extended Data Fig. 3: Antibiotic resistome is expanded in micronutrient deficient mice.

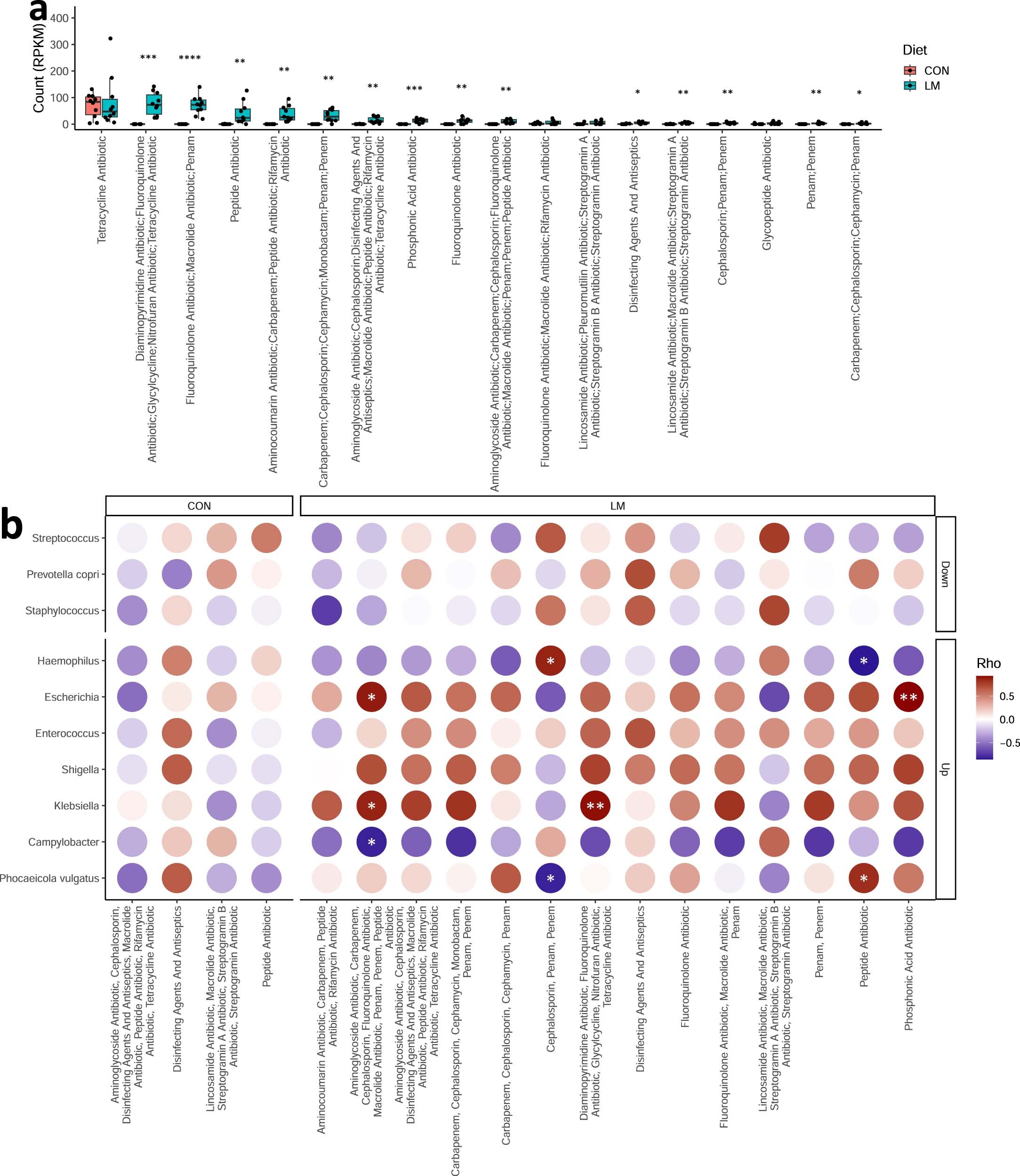

ShortBRED and CARD analysis revealed significantly higher antibiotic drug-class genes in the low-micronutrient treated mice. (a) RPKM counts of antibiotic drug class per group. Corrected P values were calculated using MaAsLin2 and represented as asterisks. (b) Spearman correlation analysis heatmap of opportunistic bacteria and antibiotic drug class. *Q < 0.05, **Q < 0.01, *** Q < 0.001, ****Q < 0.0001. Data shown are from 10 individual mice per group.

Source data
