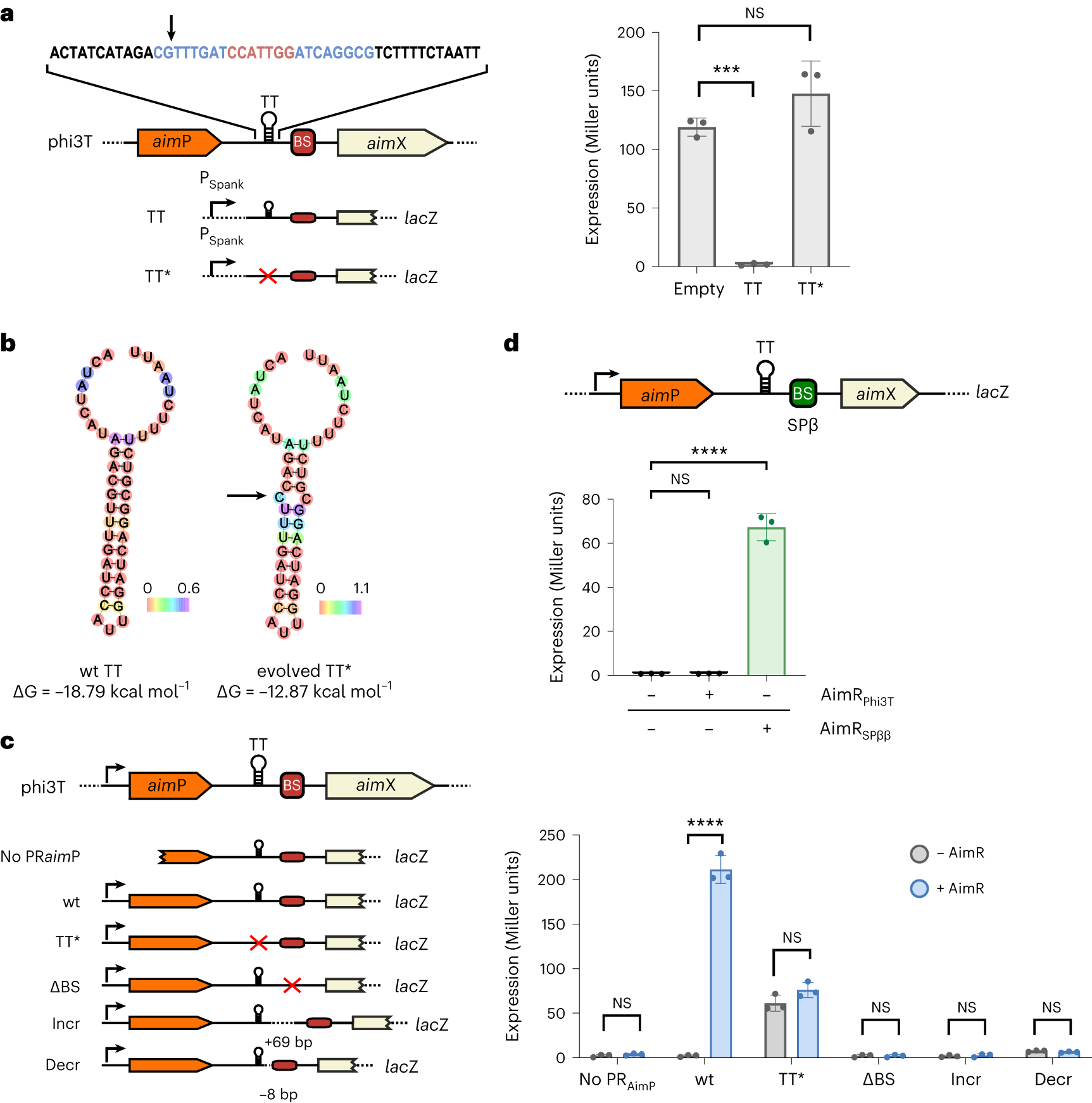

Fig. 1: AimR functions as an antiterminator of a transcript that initiates at aimP.
From: Antagonistic interactions between phage and host factors control arbitrium lysis–lysogeny decision
