Extended Data Fig. 6: phi3T_93 structures superimposition.
From: Antagonistic interactions between phage and host factors control arbitrium lysis–lysogeny decision

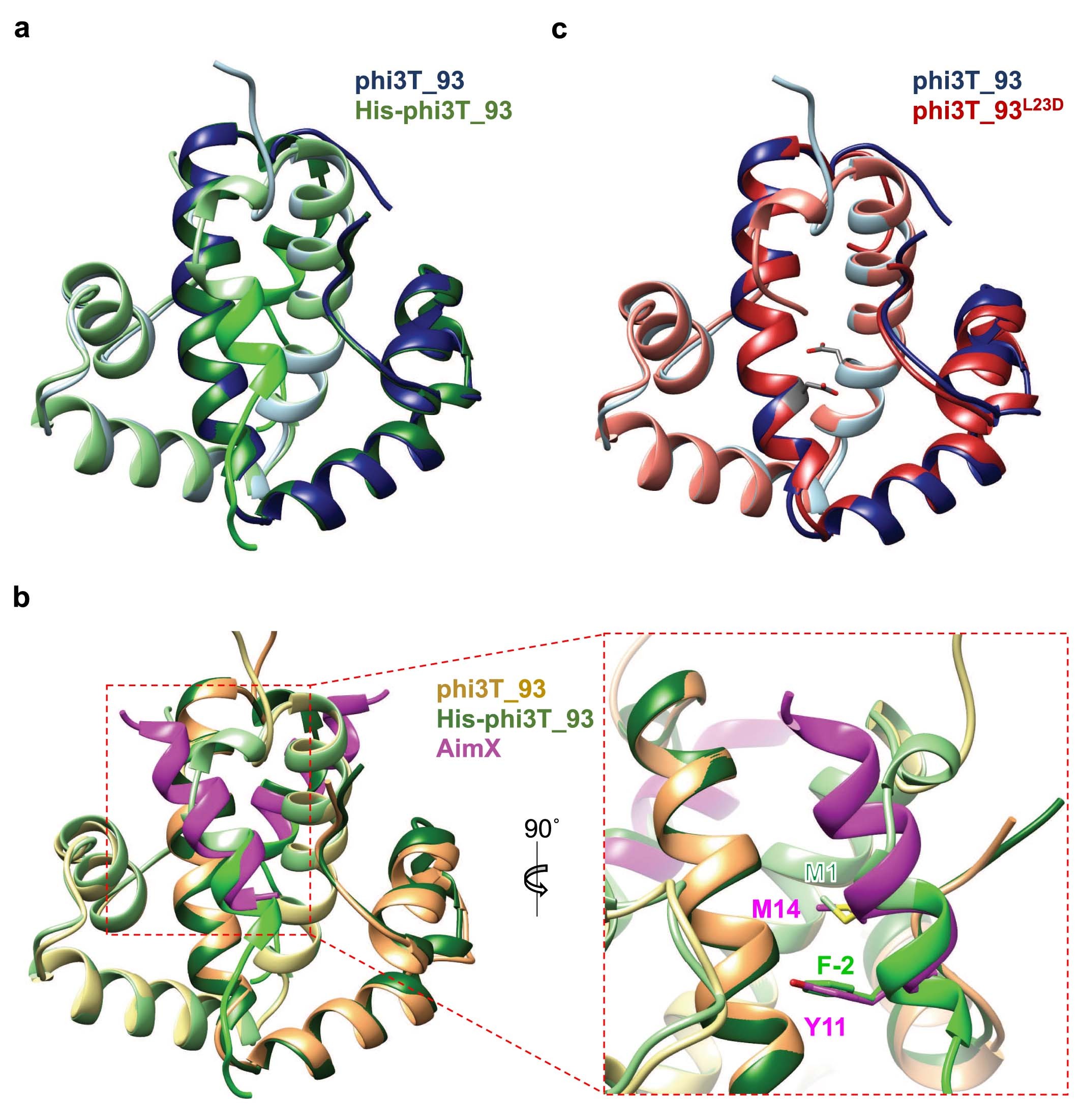

Superimposition of the ribbon represented crystal structures of phi3T_93 (shades of blue) and His-phi3T_93 (shades of green) (a), phi3T_93, His-phi3T_93 and AimX-phi3T_93 complex (b) and phi3T_93 and phi3T_93L23D(c). Note that phi3T_93 and His-phi3T_93 dimers are coloured in shades of blue and green respectively. Residues belonging to the linker with the His-tag are coloured in fluorescent green for both monomers. AimX is coloured in magenta whereas phi3T_93 bound to AimX is coloured in shades of yellow. phi3T_93L23D dimer is coloured in shades of red, whereas the mutated residue is displayed in dark grey.
