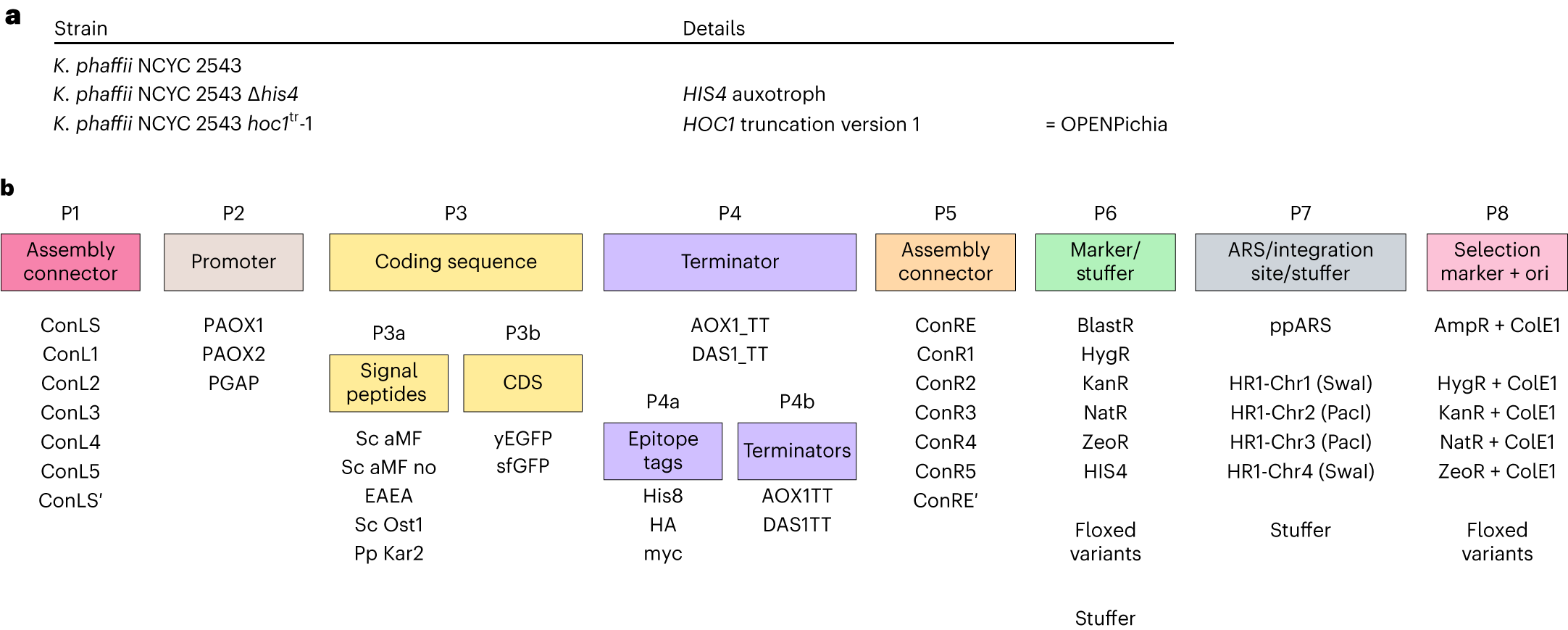

Fig. 6: Overview of the available OPENPichia strains and the different parts of the MoClo toolbox.
From: OPENPichia: licence-free Komagataella phaffii chassis strains and toolkit for protein expression
a, Overview of the strains that are available from VIB as part of the OPENPichia resource. b, Overview of the parts of the MoClo toolbox that is distributed from the OPENPichia resource. All of these strains and materials are new and reported for the first time in this study. For each part, the available elements are depicted. To generate multigene destination vectors or co-expressing vectors, additional parts are available. All plasmids and plasmid maps are available at the BCCM/GeneCorner Plasmid Collection.
