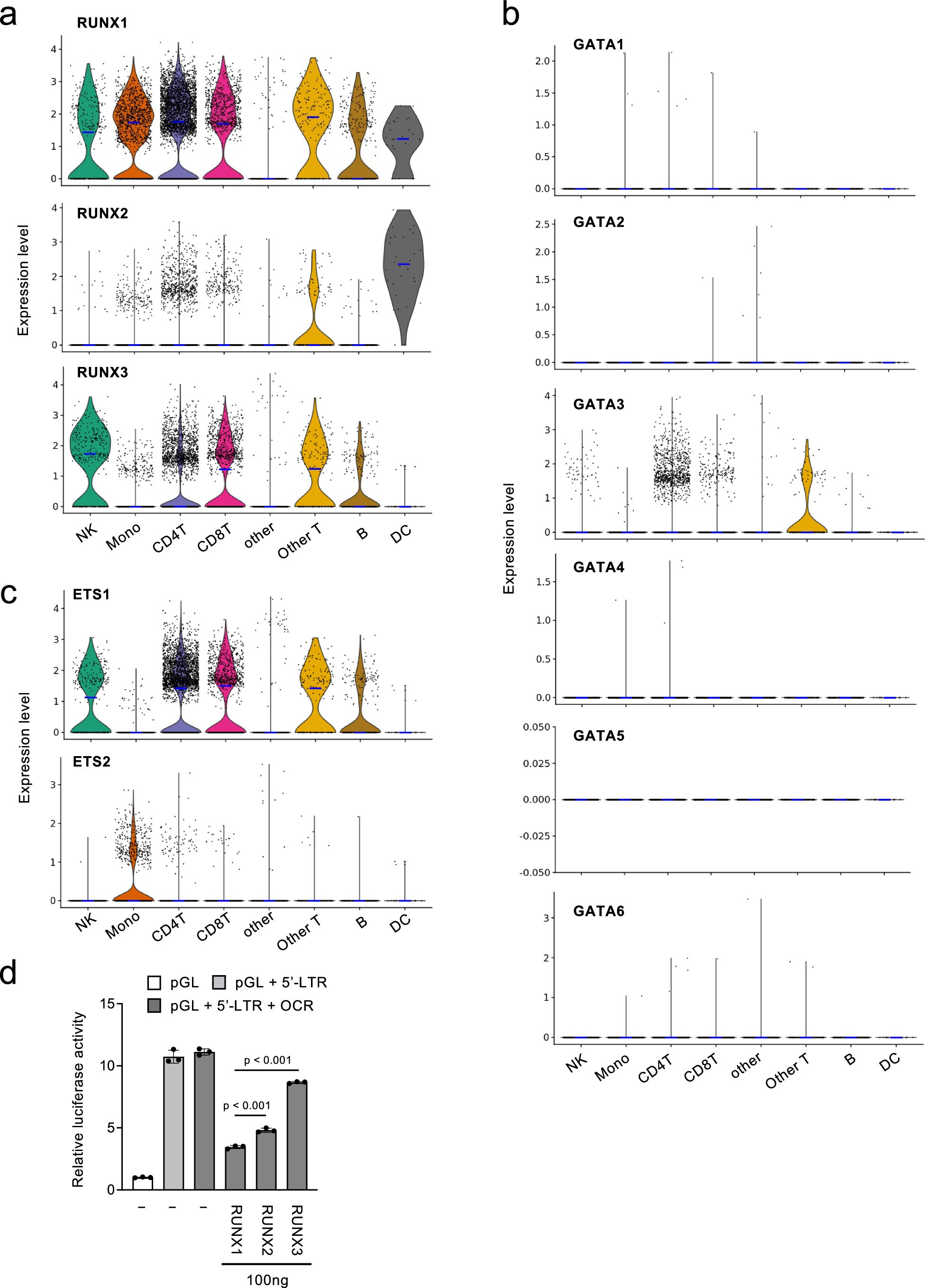

Extended Data Fig. 2: Expression profile of RUNX, ETS, and GATA family genes in PBMC subset.
From: Intragenic viral silencer element regulates HTLV-1 latency via RUNX complex recruitment
a-c, Single cell multiome (ATAC and GEX) analysis using data from healthy donor. Violin plots of RNA expression levels of RUNX family (a), GATA family (b) and ETS family (c) across different PBMC cell types. d, 5′-LTR transcriptional regulation of HTLV-1 OCR by RUNX family. 293 T cells were used for luciferase reporter assay at 48 hours after transfection. At least 2 independent experiments were performed. Bars and error bars represent the mean ± SD of results in triplicate experiments. p values were calculated using a two-sided, unpaired Student’s t-test.
