Extended Data Fig. 5: Secondary structure and electrostatic potentials of JUNV and MACV GPC subunits.

From: Molecular organization of the New World arenavirus spike glycoprotein complex

Extended Data Fig. 5: Secondary structure and electrostatic potentials of JUNV and MACV GPC subunits.The alternative text for this image may have been generated using AI.

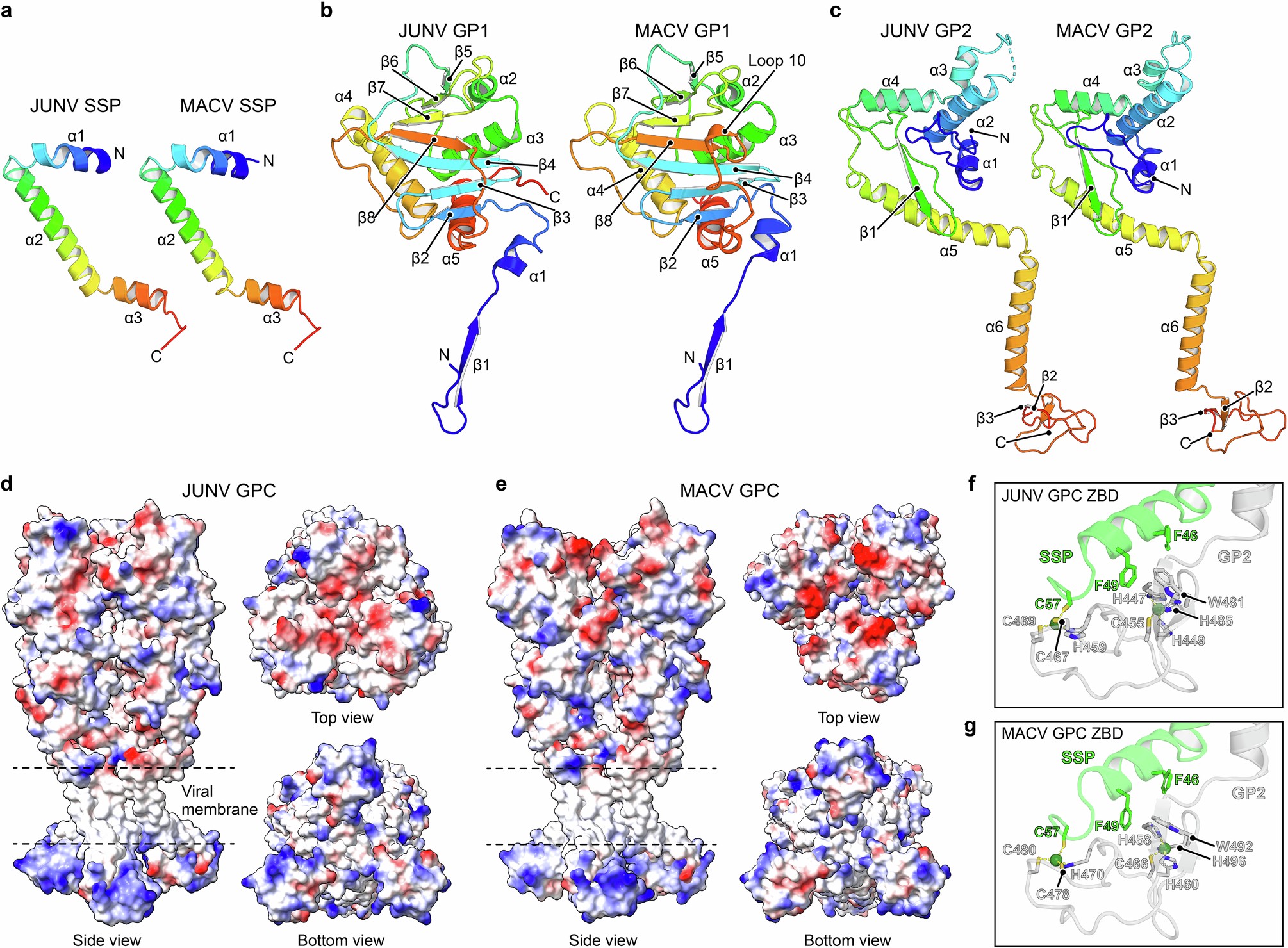

a–c, Ribbon diagrams showing secondary structure elements in SSP (a), GP1 (b), and GP2 (c). The positions of N and C termini are also indicated. For MACV GP1, the C terminus is in the backplane and is therefore not indicated. d,e, Electrostatic potential of JUNV GPC (d) and MACV GPC (e) as determined using UCSF ChimeraX62. f,g, Zinc-binding domains (ZBDs) of JUNV GPC (f) and MACV GPC (g). Zinc ions are shown as green spheres. Residues involved in SSP-GP2 interactions or in metal coordination are shown as sticks.
