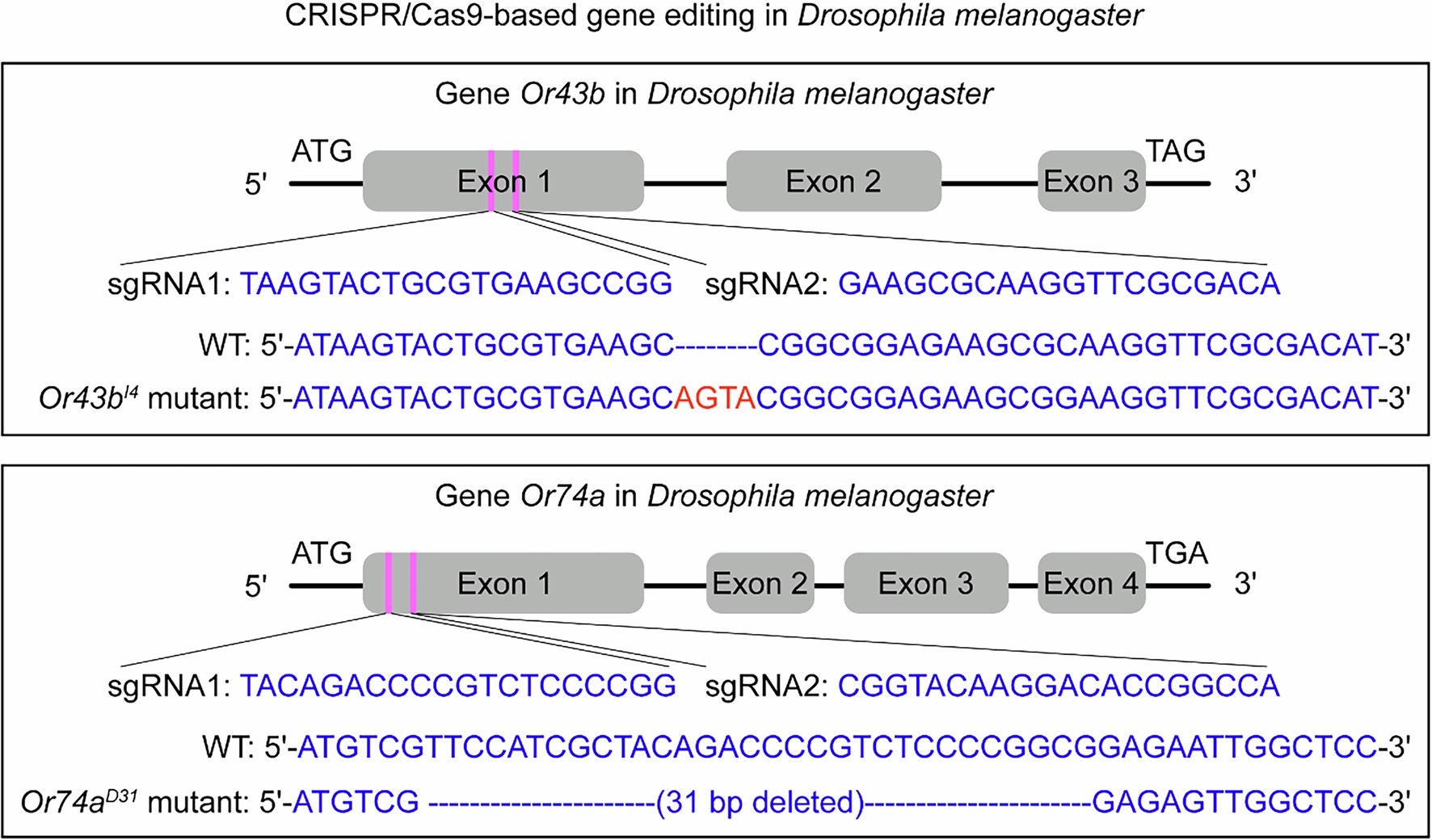

Extended Data Fig. 3: Generation of the Or43b and Or74 mutant using CRISPR/Cas9-based gene editing.
From: Engineered Metarhizium fungi produce longifolene to attract and kill mosquitoes
Upper panel: Or43b mutant Or43bI4 with four base pairs (highlighted in red) inserted into Exon 1. Lower panel: Or74a mutant Or74aD31 with 31 base pairs deleted (shown in dashed line) in the Exon 1.
