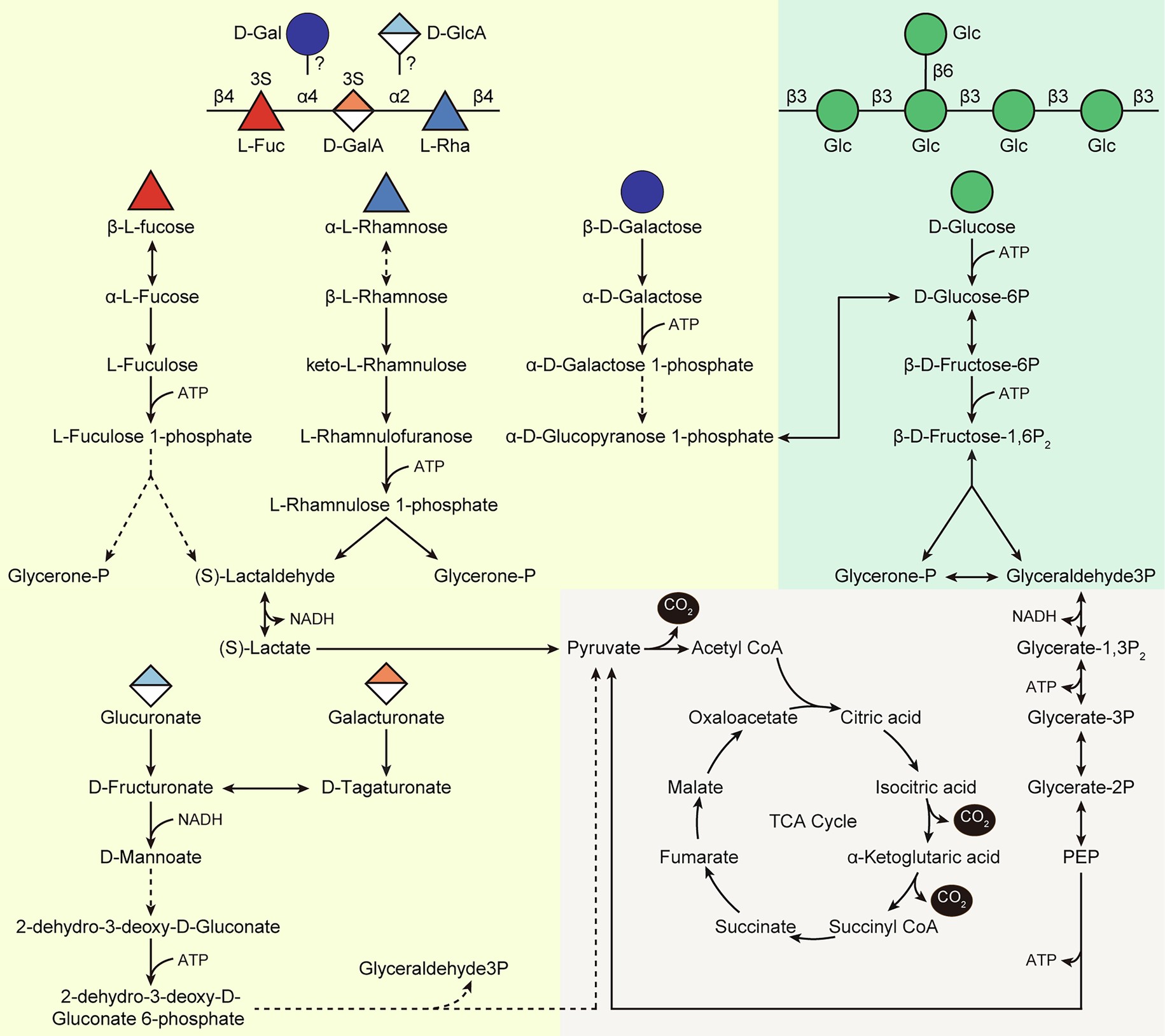

Extended Data Fig. 10: Reconstructed metabolic pathways for six monosaccharides in V_227.
From: Phosphate deprivation restricts bacterial degradation of the marine polysaccharide fucoidan
Solid lines represent homologs found in the genome or this reaction is spontaneous, dashed lines represent homologs not found. The structure of Eisenia bicyclis Laminarin and the partial structure of Glossomastix fucoidan are on the top.
