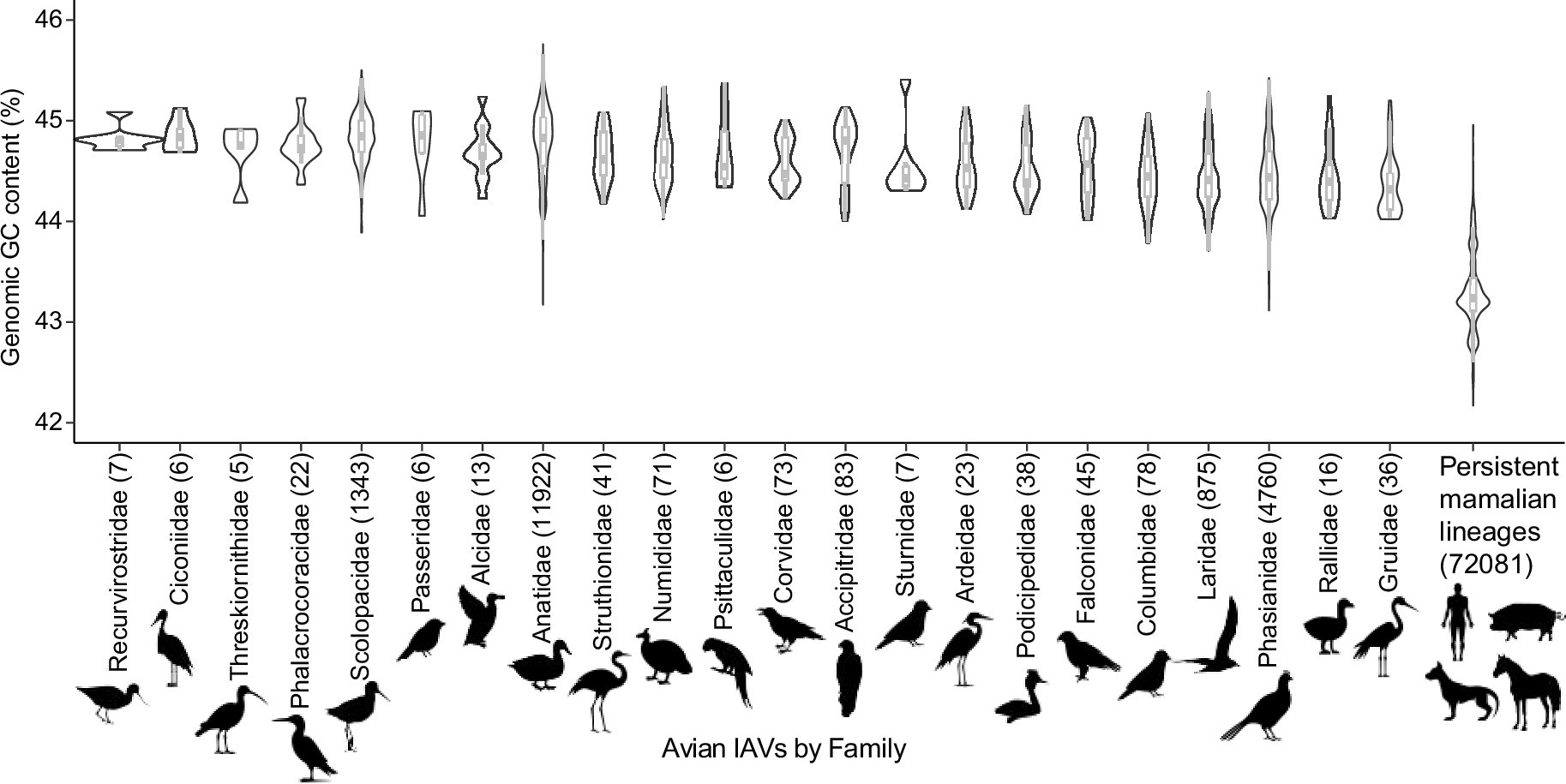

Extended Data Fig. 3: Genomic GC content of avian IAVs.
From: Genomic features associated with sustained mammalian transmission of avian influenza A viruses
Avian IAVs are shown by host families with more than 5 sequences that are sorted by 25th percentile in descending order from left to right. Genomic GC content of the 12 persistent mammalian lineages is present as reference. The whiskers represent the minimum and maximum values while the box shows the lower and upper quartiles with the median crossing the box.
