Extended Data Fig. 2: Schematic diagrams of architecture of Siglec-5 with the CNT interfaces.

From: Carbon nanotube recognition by human Siglec-14 provokes inflammation

Extended Data Fig. 2

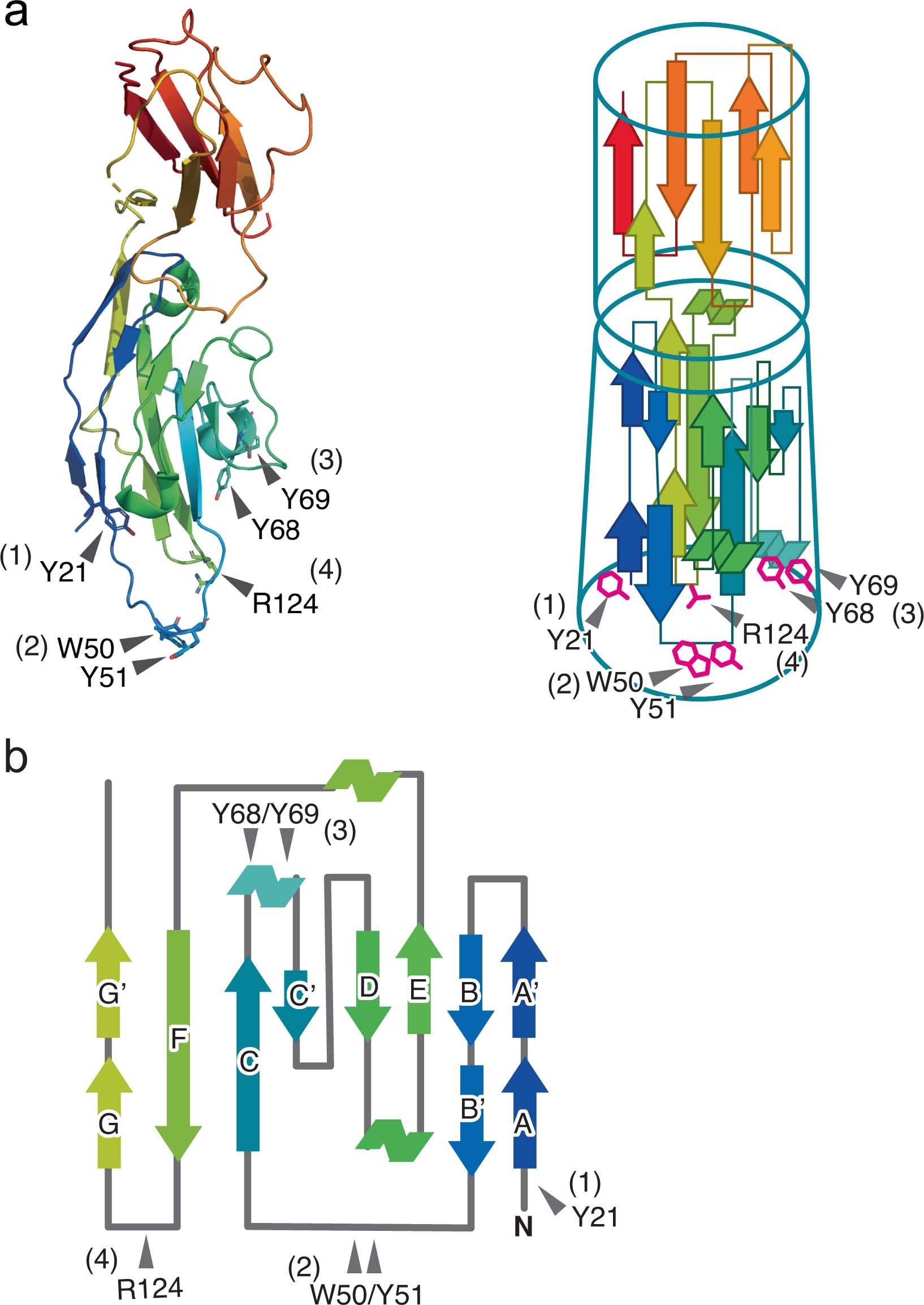

a, Extracellular domains of Siglec-5 are abstracted as two connected cylinders. The four interfaces (1) through (4) are placed at the extracellular bottom of the cylinder. b, The topology diagram emphasizes the positions of interfaces along the sequence.
