Extended Data Fig. 3: A cluster analysis of Siglec-5-CNT binding modes observed in the MD simulations.

From: Carbon nanotube recognition by human Siglec-14 provokes inflammation

Extended Data Fig. 3

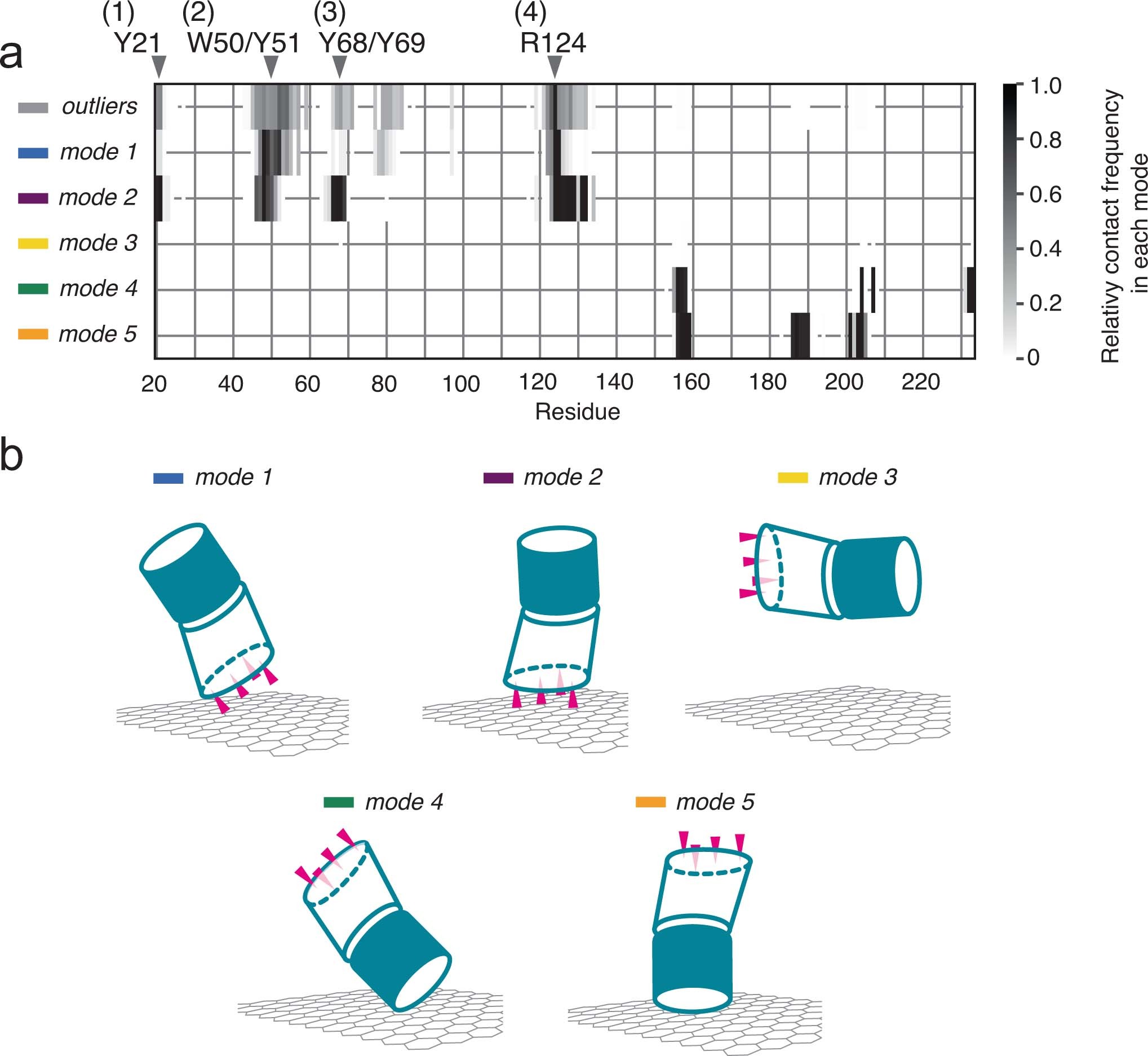

a, Relative contact frequency of each Siglec-5 residue in each cluster shows that modes 1 and 2 recognize CNT via V-set Ig-like domain. Mode 4 and 5 contact CNT via C2-set Ig-like domain neighboring a cytoplasmic domain. Mode 3 is the unbound form. b, Schematic diagram presents the characteristics of each mode.
