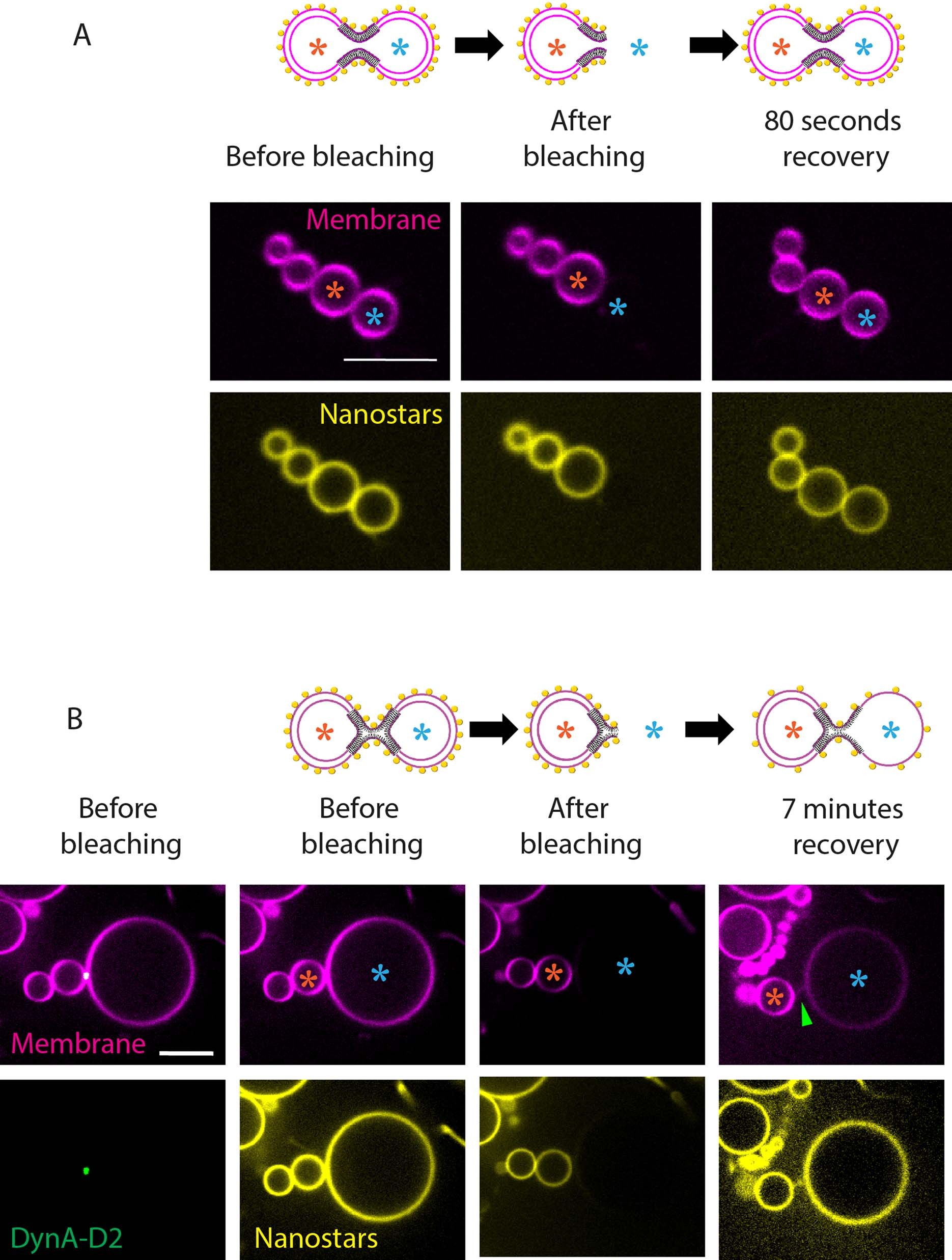

Extended Data Fig. 7: Recovery in hemi-scission state is achieved via the outer leaflet.
From: Dynamin A as a one-component division machinery for synthetic cells
(a) Full recovery of both fluorescent lipids (which are in both leaflets of the bilayer) and fluorescent nanostars (which attach to the outer leaflet only) upon photo-bleaching of a dumbbell liposome having an open neck (without DynA). Scale bar: 5µm. (b) Partial recovery of fluorescent lipids and full recovery of fluorescent nanostars upon photo-bleaching of a dumbbell liposome with a DynA-D2 cluster. The neck is in a hemi-scission state, as visualized by the partial lipid recovery. The green arrowhead indicates the position of the neck connecting the two lobes. Scale bar: 10µm.
