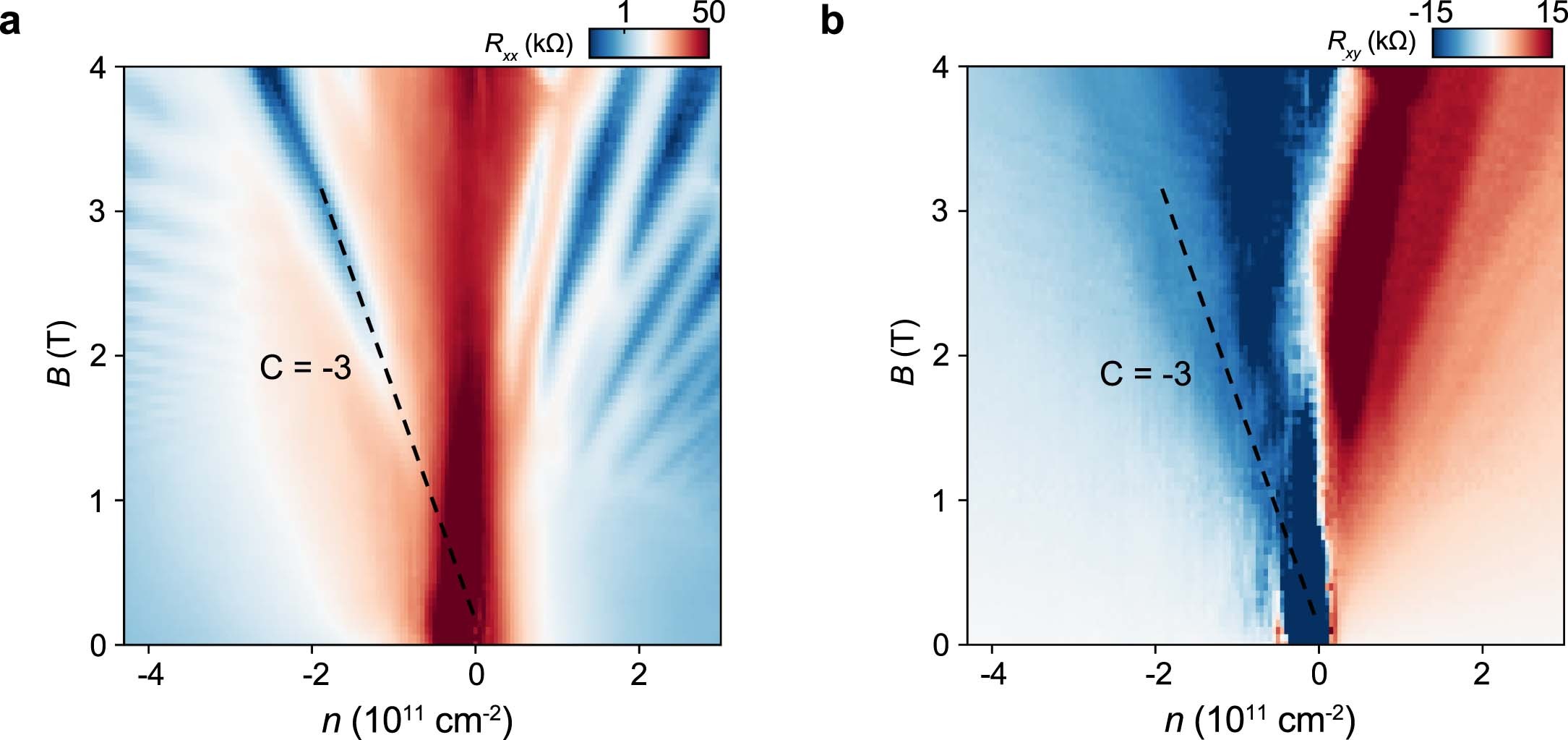

Extended Data Fig. 6: The C = -3 state at D = 0.21 V/nm.
From: Correlated insulator and Chern insulators in pentalayer rhombohedral-stacked graphene
a, b, 2D color plot of Rxx and Rxy versus carrier density n and out-of-plane magnetic field B taken at D = 0.21 V/nm at a temperature of 100 mK. The dashed line indicates the C = -3 state. The C = -3 state is the only visible state on the hole doping side at low magnetic fields, in contrast to the electron side where all Landau levels appear at a similar magnetic field.
