Extended Data Fig. 1: Higher magnification neutron data and EPSR fits (with residual) of NMP solutions of nanotubide salt.

From: Intermediate-range solvent templating and counterion behaviour at charged carbon nanotube surfaces

Extended Data Fig. 1

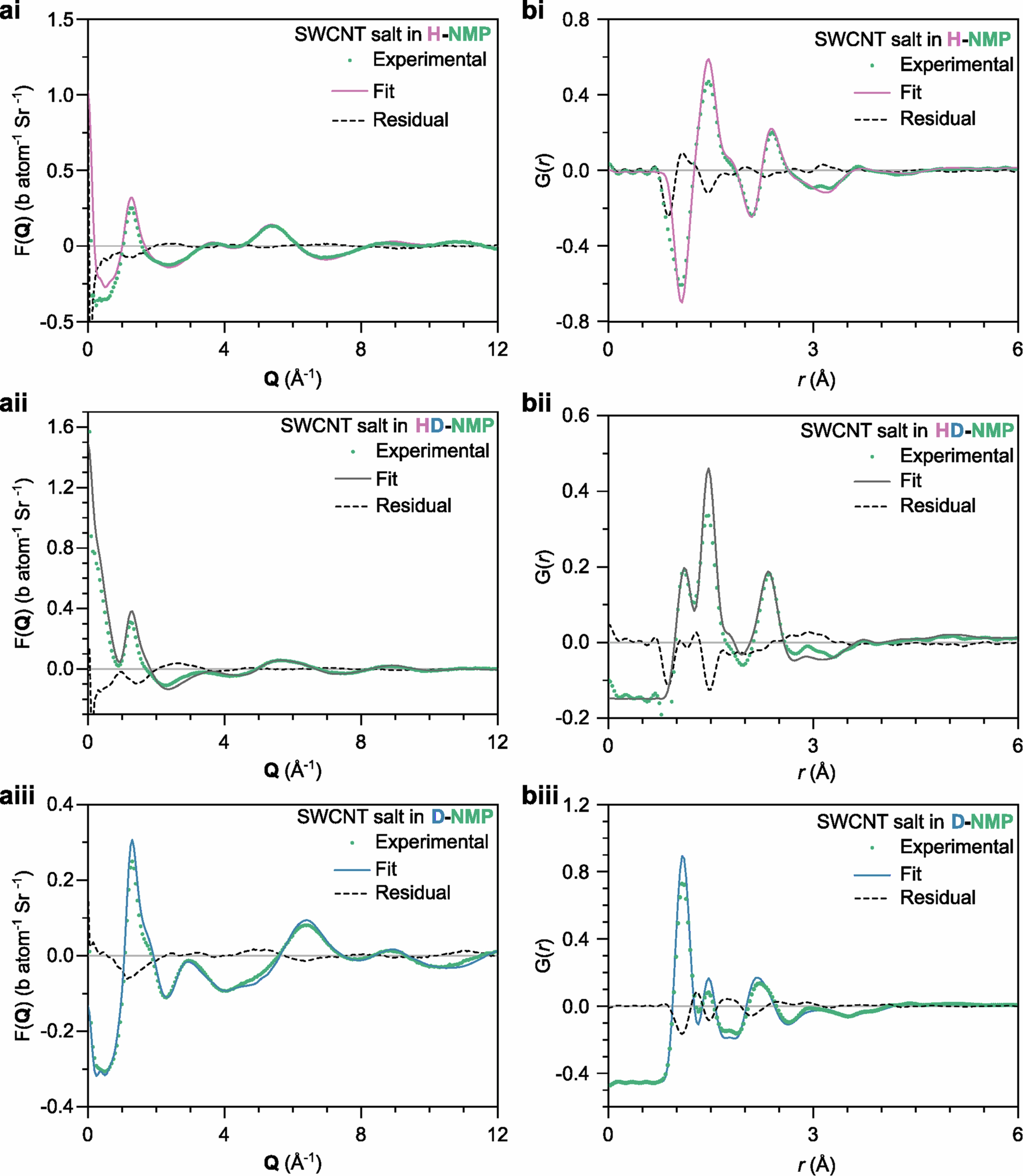

(a) Total structure factors and (b) Composite radial distribution functions, obtained by Fourier transformation of the structure factors of 25 mg mL−1 nanotubide solution in different isotopic contrasts of NMP. (i) H-NMP, C5H9NO. (ii) 50:50 molar mixture of H-NMP and D-NMP, (iii) D-NMP, C5D9NO. Green circles – Experimentally acquired data and Fourier Transform thereof; Solid line – Data from EPSR-refined simulation; Black dashed line – Residual (Fit-Experimental). Guide to the eye at y = 0 provided as pale grey line for comparison to residual.
