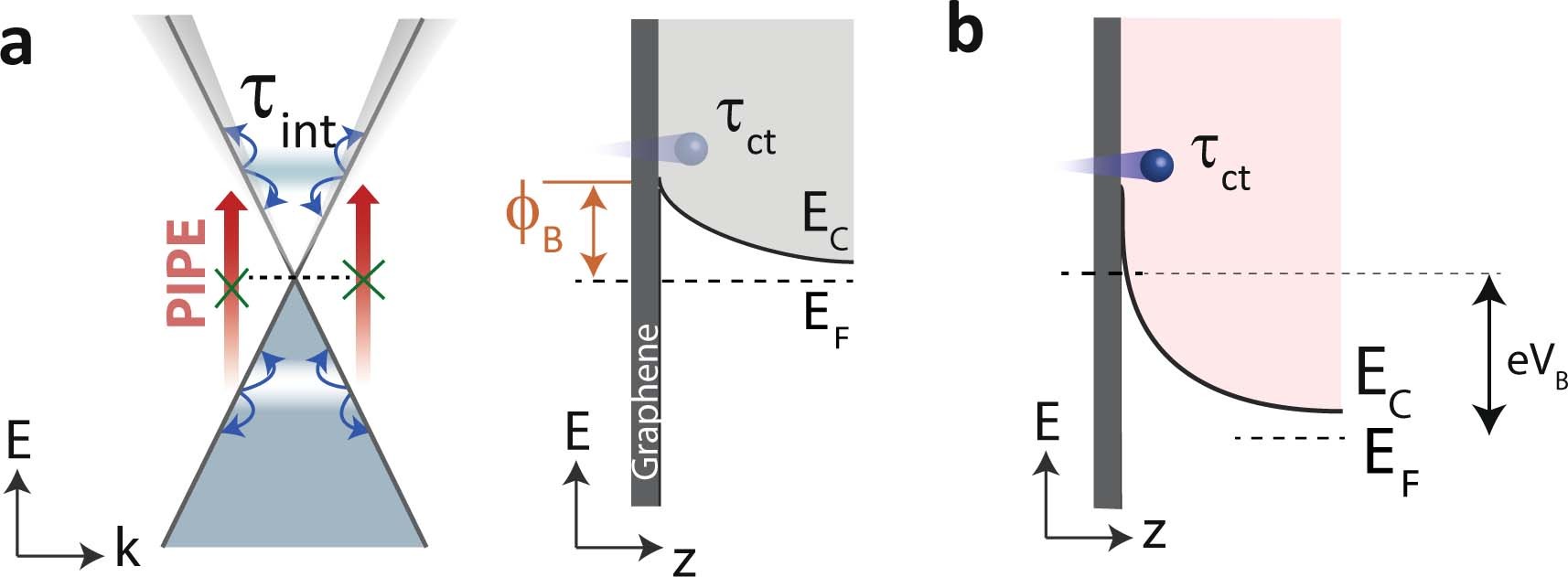

Extended Data Fig. 1: Bias-controlled electric field at the Schottky junction.
a, Applying no or a slightly positive bias voltage VB reduces the DC electric field at the Schottky junction, hampering a fast charge transfer. b, A large reverse bias voltage leads to a greater band bending in SiC and hence a larger DC electric field at the interface, increasing the charge transfer rate dramatically (Fig. 3).
