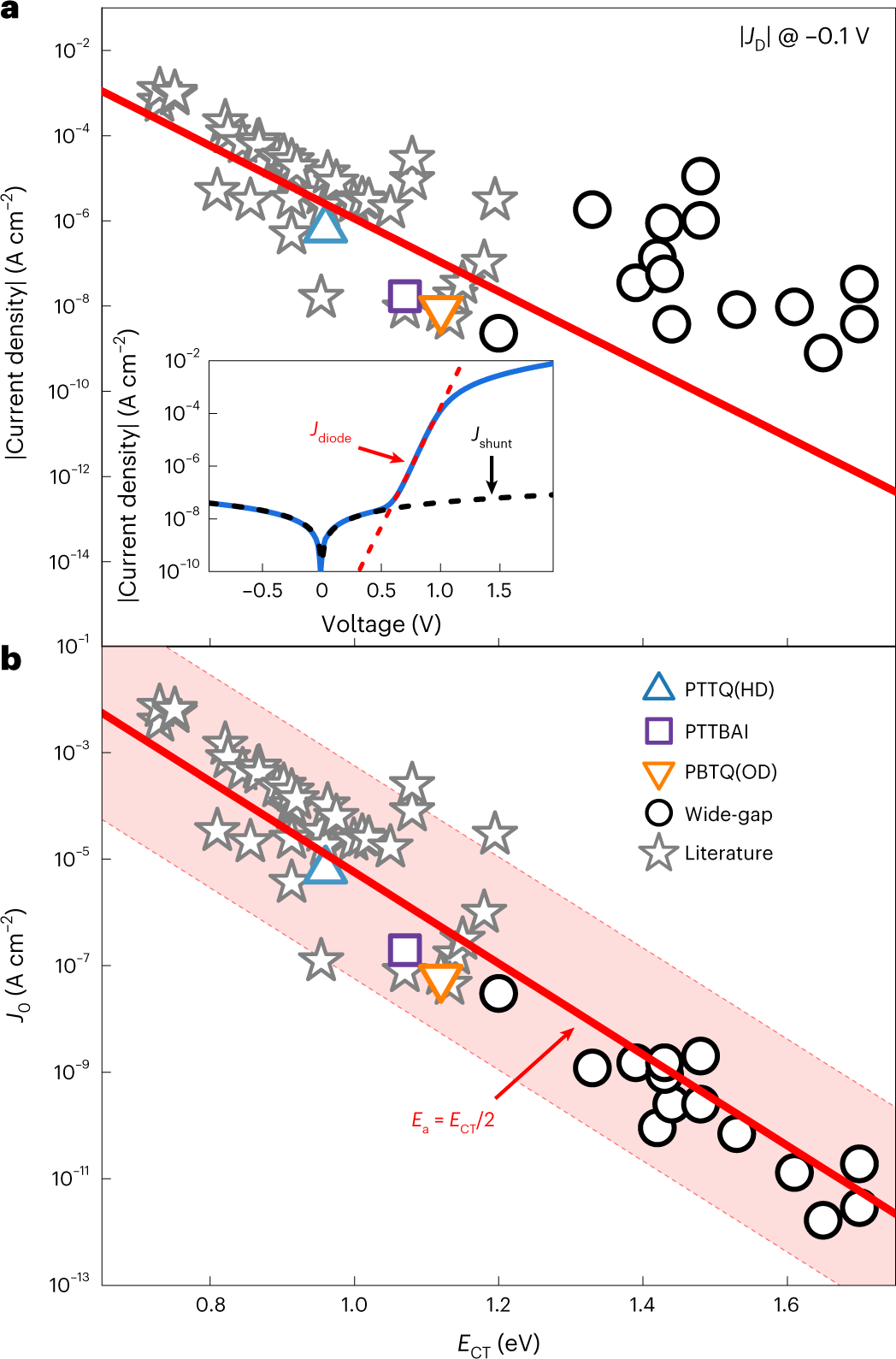

Fig. 3: General trend of the dark current densities of OPDs.
From: Mid-gap trap state-mediated dark current in organic photodiodes

a, Experimentally determined JD measured at −0.1 V as a function of ECT of the OPDs studied in this work (triangles, square and circles) and a large set of narrow-gap BHJ systems from the literature (stars16). The inset shows the JD–V characteristics of PBDB-T:EH-IDTBR, demonstrating the superposition of shunt (linear) and diode current (m = 2) components as well as the dominance of shunt in the reverse bias of systems with wide D–A gaps (ECT > 1.2 eV). b, Extracted dark saturation current density as a function of ECT of the OPDs studied in this work (triangles, square and circles), as well as those derived from literature values with ECT < 1.2 eV (stars). Red lines represent the expected trend, \({J_0} = {J_{00}\exp \left( { - \frac{{E_{{{{\mathrm{CT}}}}}}}{{2kT}}} \right)}\), when mid-gap trap-mediated transitions (Ea = ECT/2) dominate the dark current. Here, the red solid line corresponds to a J0 with prefactor J00 = 2,000 A cm−2. For comparison, we have included a shaded area with an upper bound corresponding to J00 = 2 × 105 A cm−2 and lower bound corresponding to J00 = 20 A cm−2.
