Extended Data Fig. 3: Transmission electron microscopy (TEM) and elemental distribution analysis.

From: High-bandwidth perovskite photonic sources on silicon

Extended Data Fig. 3

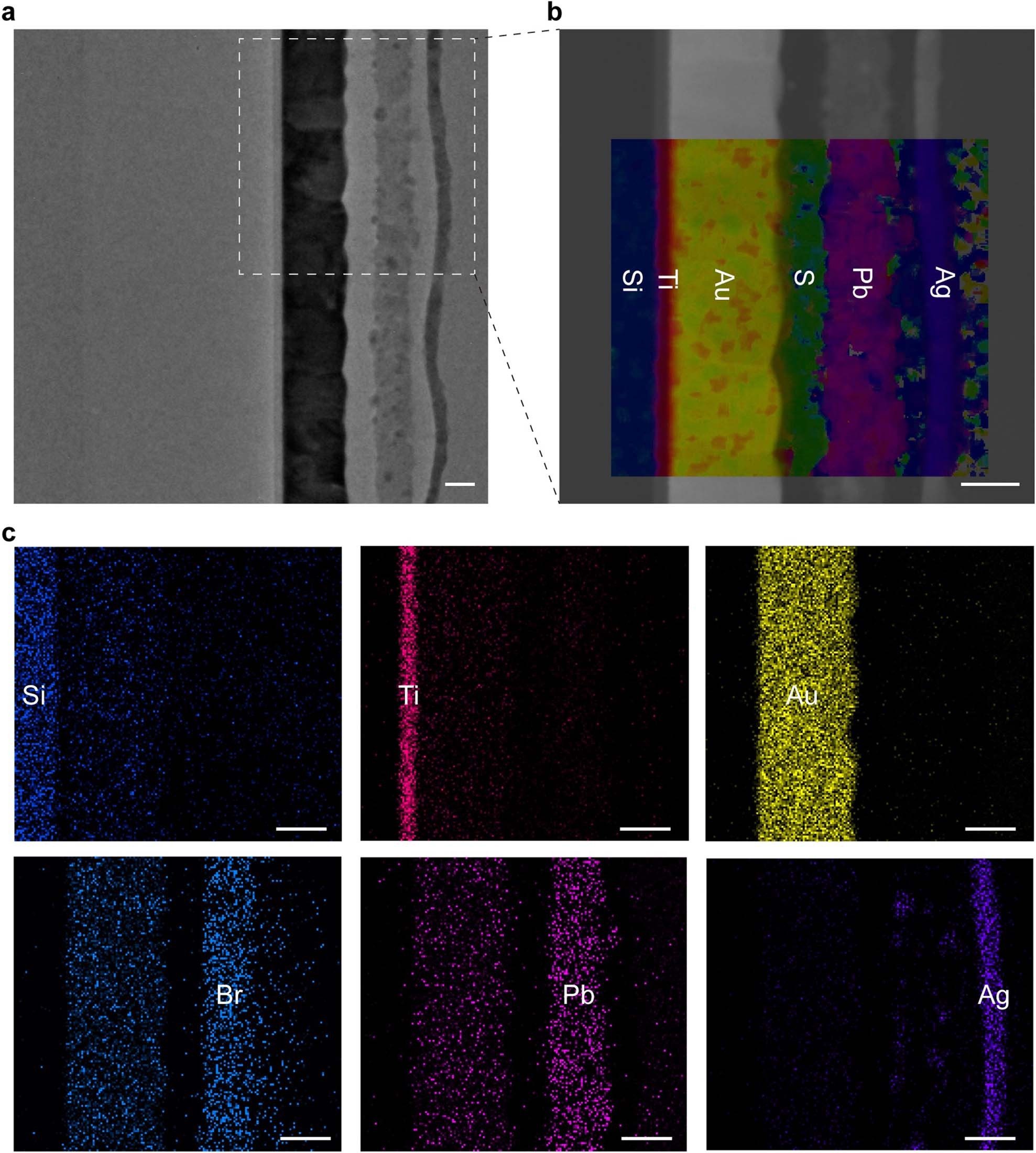

a, b, Cross-sectional scanning transmission electron microscopy (STEM) image (a) and Energy dispersive spectroscopy (EDS) map (b) of the optimised t-BA device. c, Elemental distribution maps of the selected area. Scale bar, 50 nm.
