Extended Data Fig. 5: Supplementary photoelectron angular distribution and asymmetric distribution.

From: Attosecond-resolved non-dipole photoionization dynamics

Extended Data Fig. 5

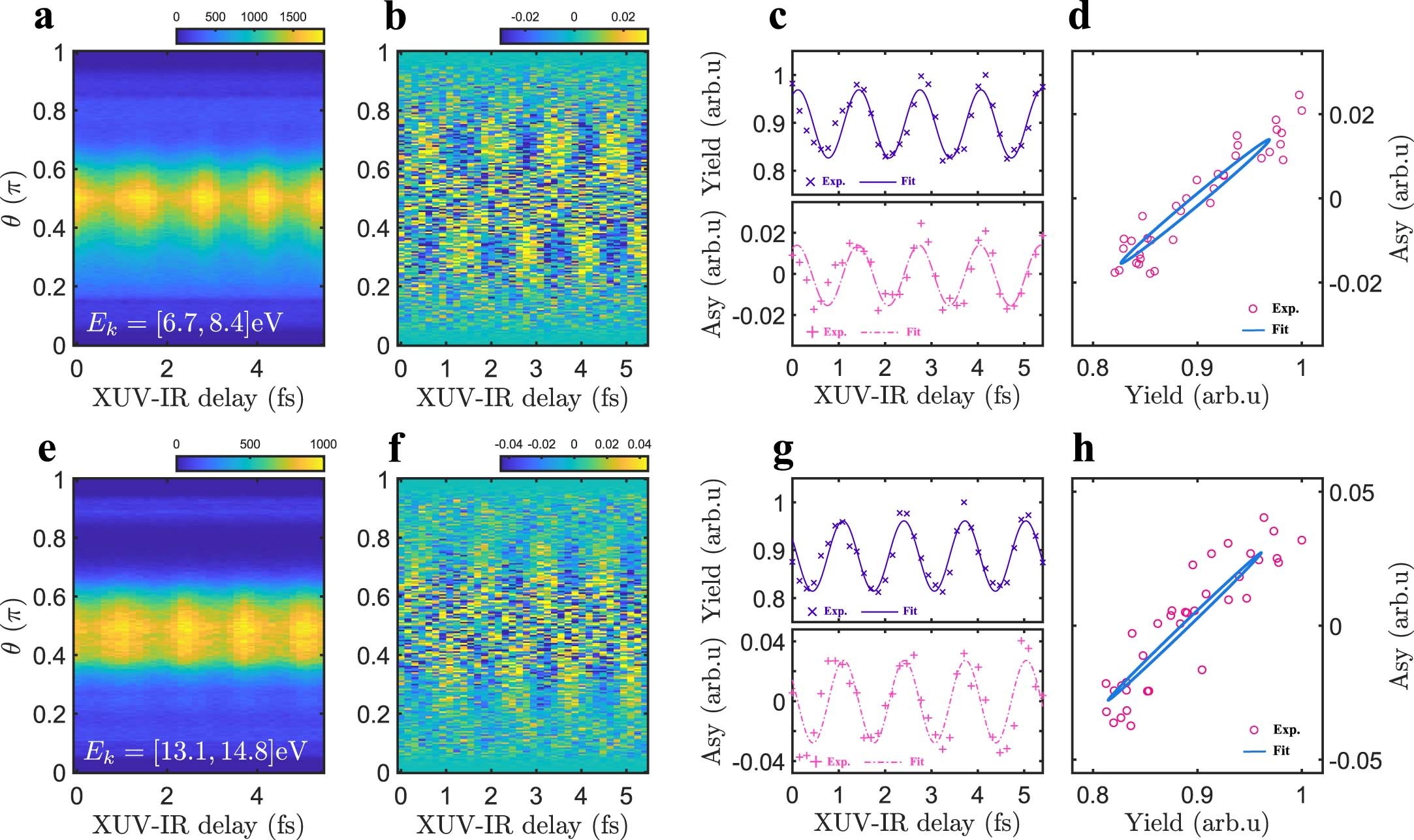

a Measured delay- and angle-resolved photoelectron spectrum for Ek = [6.7, 8.4] eV. b-d Same as Fig. 4b–d of main text, but for the results of Ek = [6.7, 8.4] eV. e-h Same as a-d, but for the results of Ek = [13.1, 14.8] eV.
