Extended Data Fig. 3: Representative SEM and AFM images of Nano-OLED.
From: Scalable nanopatterning of organic light-emitting diodes beyond the diffraction limit

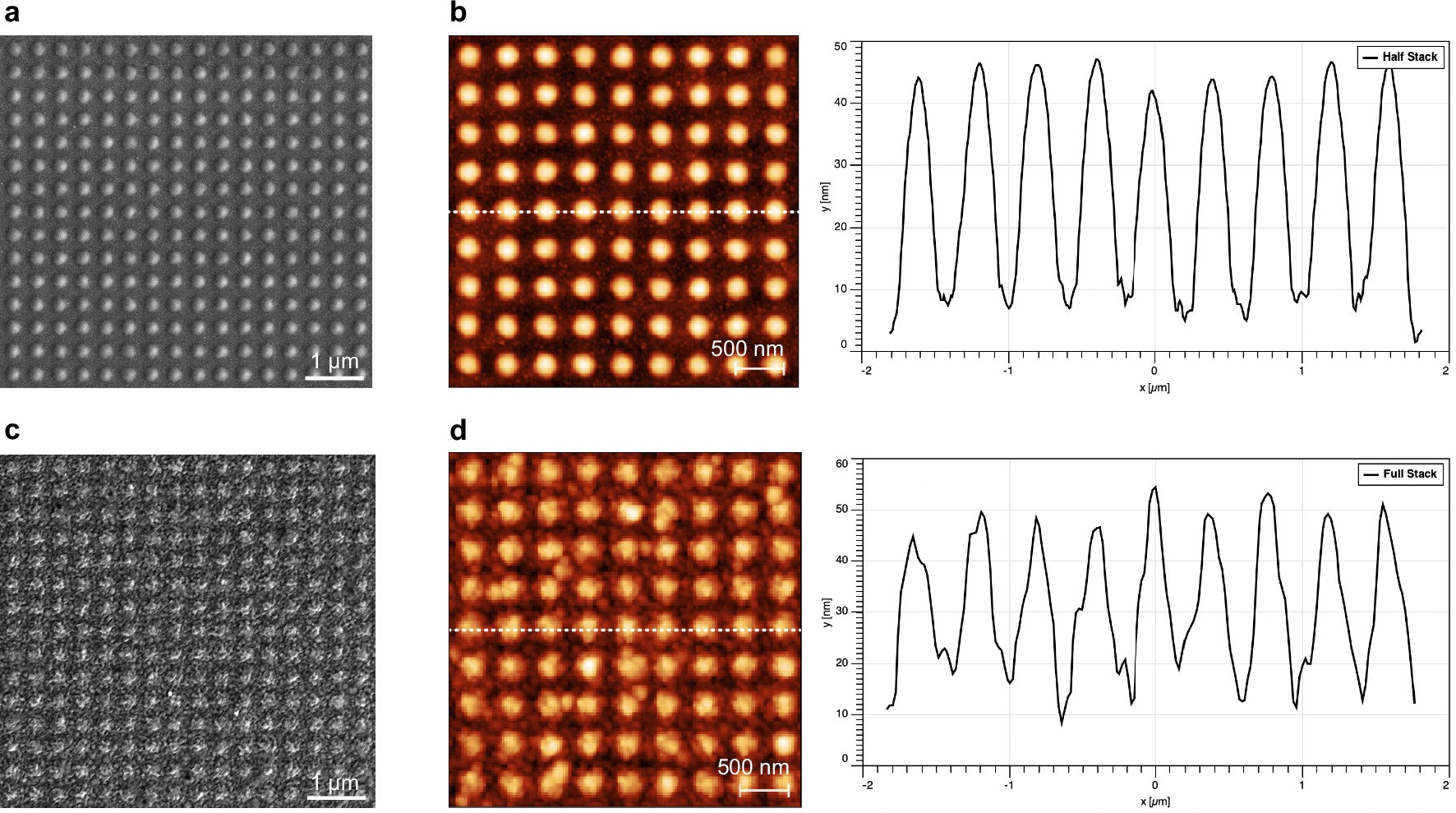

half-stack (a and b) and full-stack (c and d) structures illustrating the transfer of the EML pattern to the top Al cathode layer. Height profiles corresponding to the dashed linecuts are shown on the right.
