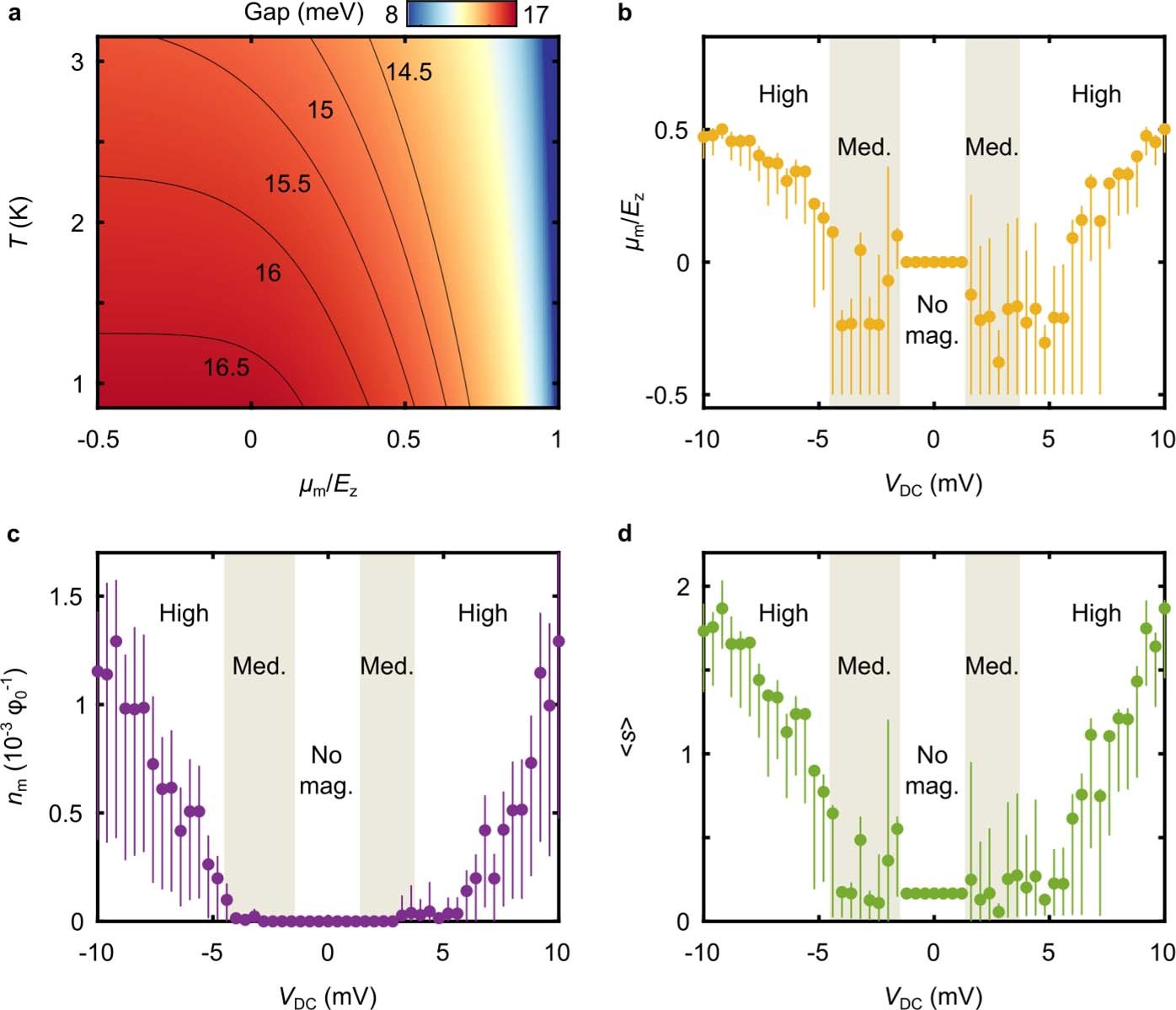

Extended Data Fig. 6: Thermodynamics of free and bound magnons extracted from location 2.
a, ν=1 gap as a function of magnon chemical potential \(\mu _m/E_z\) and temperature T computed using the skyrmion model. b-d, Magnon chemical potential \(\mu _m/E_z\) (b), free magnon density per flux nm (c) and the mean number <s > of extra flipped spins carried by a charge (d), extracted from the skyrmion model (see Methods). The shaded region corresponds to a medium bias regime where heating due to magnon injected plays a key role.
