Extended Data Fig. 3: Comparison of inverse electronic compressibility and MIM measurements.
From: Correlated Hofstadter spectrum and flavour phase diagram in magic-angle twisted bilayer graphene

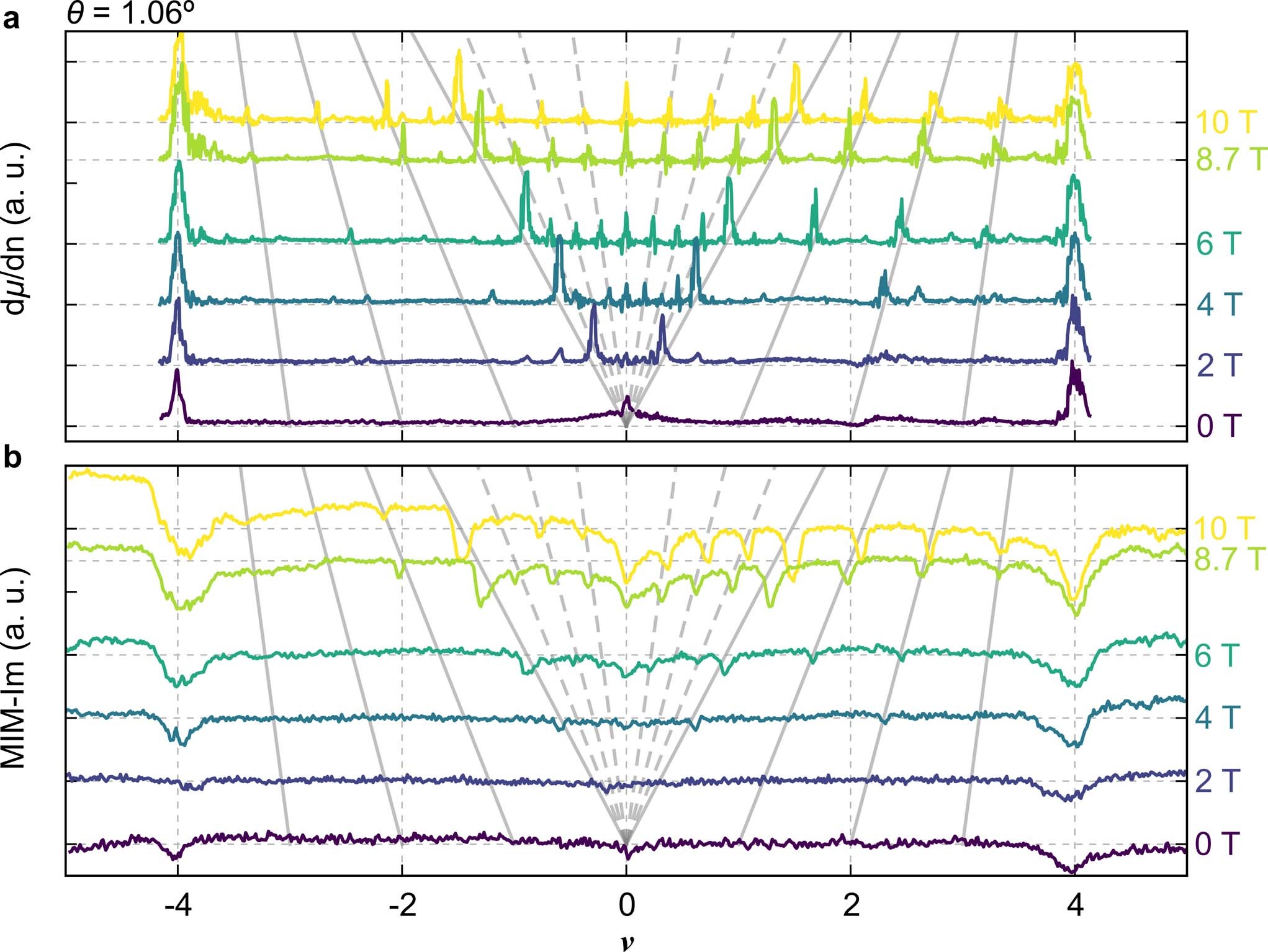

Selected dμ/dn measurements as a function of moiré filling factor ν at different perpendicular magnetic fields reproduced from Fig. 1d. The curves are vertically spaced according to the applied magnetic field and the grey lines indicate the field dependence of the incompressible states identified in Fig. 1e. b, MIM measurements of the local conductivity at the same sample position as a function of ν and at the same magnetic fields. A decrease in MIM-Im corresponds to a decrease in conductivity confirming the main ChI and zLLs are associated with local resistive behavior. The MIM measurements were taken at T = 450 mK.
