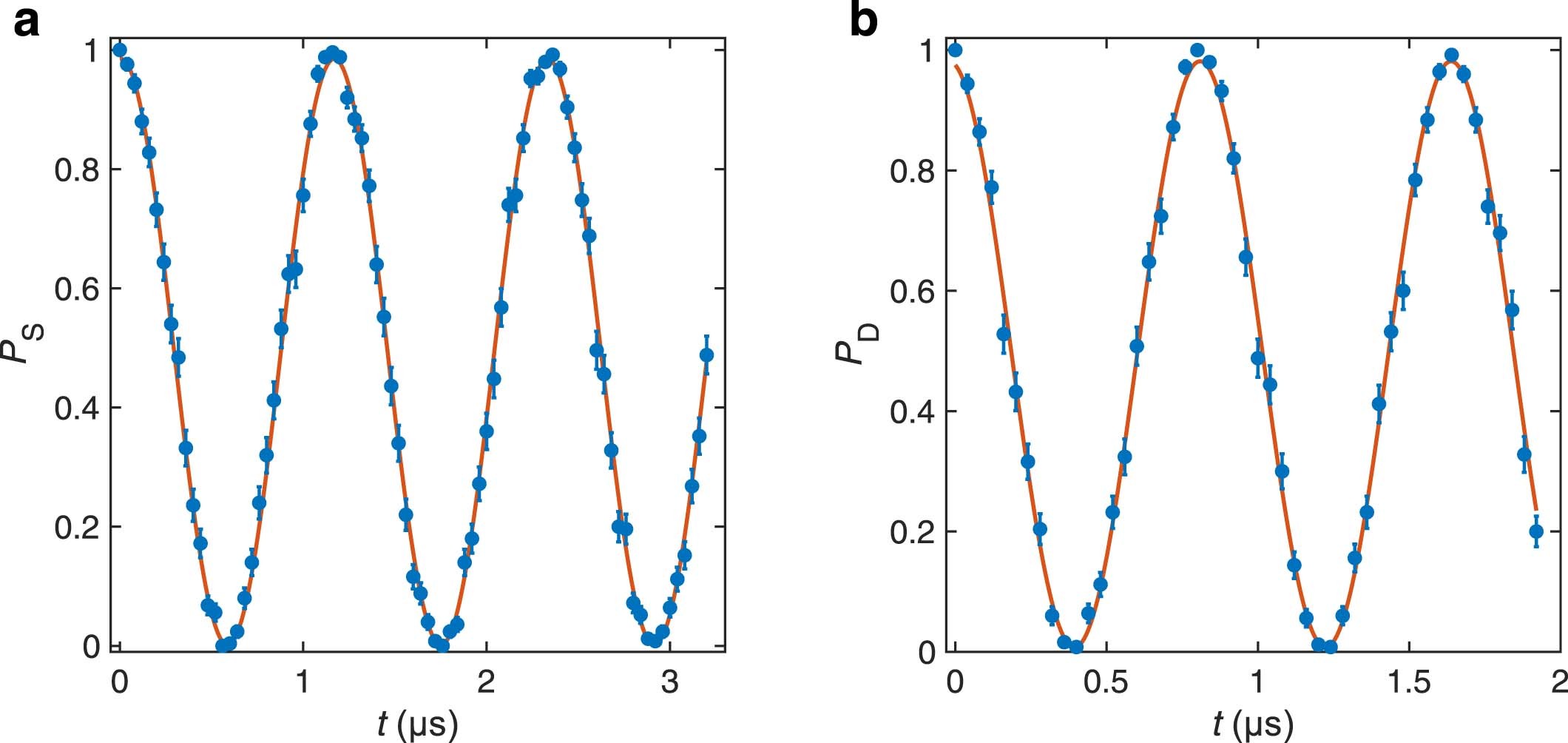

Extended Data Fig. 2: Carrier Rabi oscillation of the 411-nm laser and 3,432-nm laser.
From: Realizing coherently convertible dual-type qubits with the same ion species
Carrier Rabi oscillation of a, the 411-nm laser and b, 3,432-nm laser. The 411-nm laser has an optical power of about 0.8 mW and a beam diameter of about 8 µm, which generates a Rabi frequency of about 2π × 859.4 kHz. The 3,432-nm laser has an optical power of about 0.5 mW and a beam diameter of about 73 µm, which gives a Rabi frequency of about 2π × 1.2 MHz.
