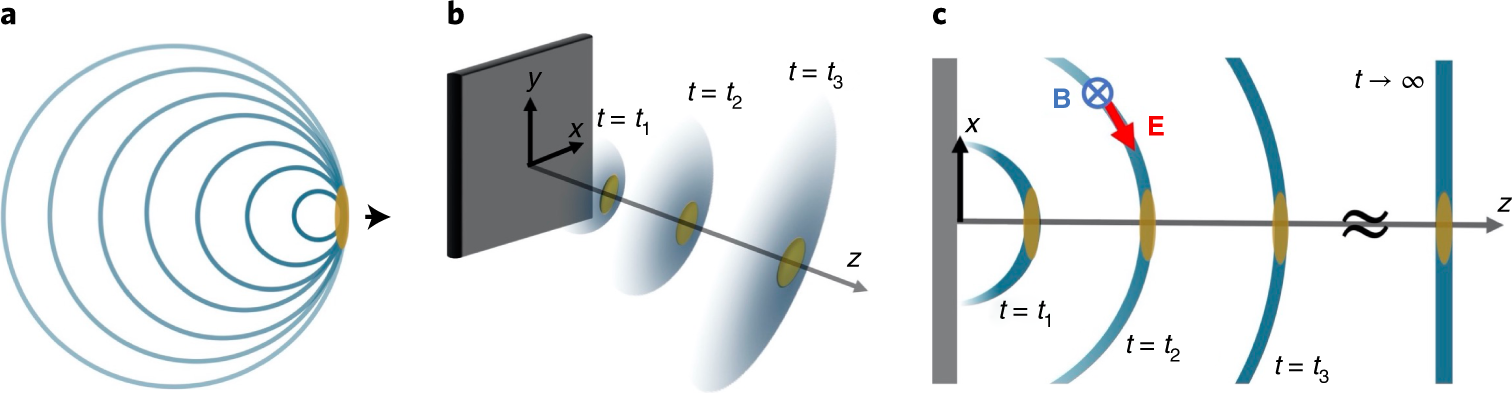

Fig. 1: Liénard–Wiechert potentials.
From: Ultrafast visualization of an electric field under the Lorentz transformation
