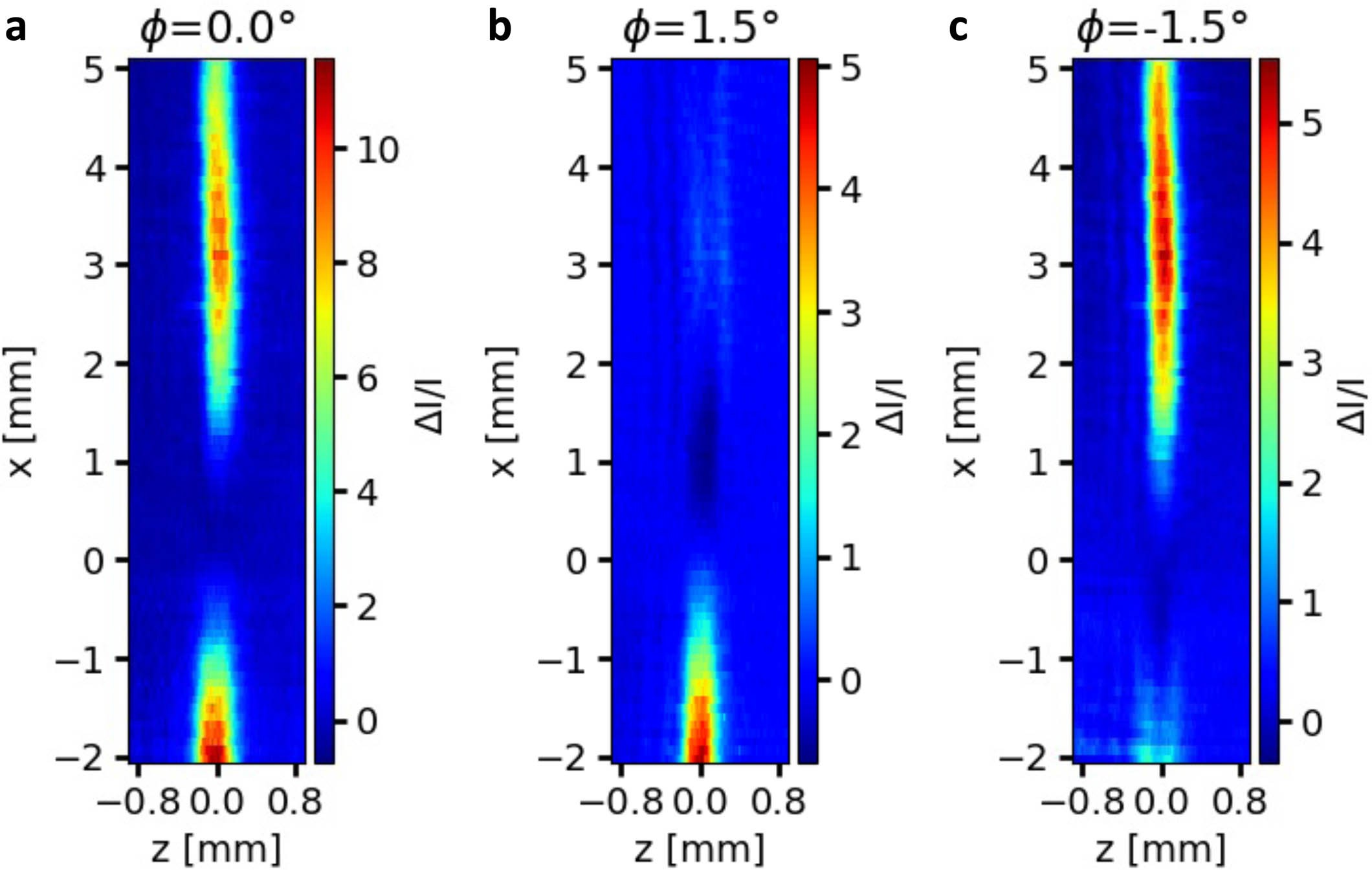

Extended Data Fig. 6: Results of the echelon-based single-shot measurement.
From: Ultrafast visualization of an electric field under the Lorentz transformation
a–c, Spatiotemporal profiles of the electric field around a relativistic electron beam obtained through echelon-based single-shot measurement with phase offset ϕ=0°, +1.5°, and -1.5°. The color bar denotes the EO signal: ΔI⁄I=(I(ϕ,Γ)-I(ϕ,0))/I(ϕ,0). Here a corresponds to the crossed-Nicol configuration. Figure 2b shows the difference in the signal between b and c, i.e., the electric field profile obtained by the phase offset method.
