Extended Data Fig. 3: Effect of gap junction conductance on topological action potential dimensions and velocity.
From: Observation of topological action potentials in engineered tissues

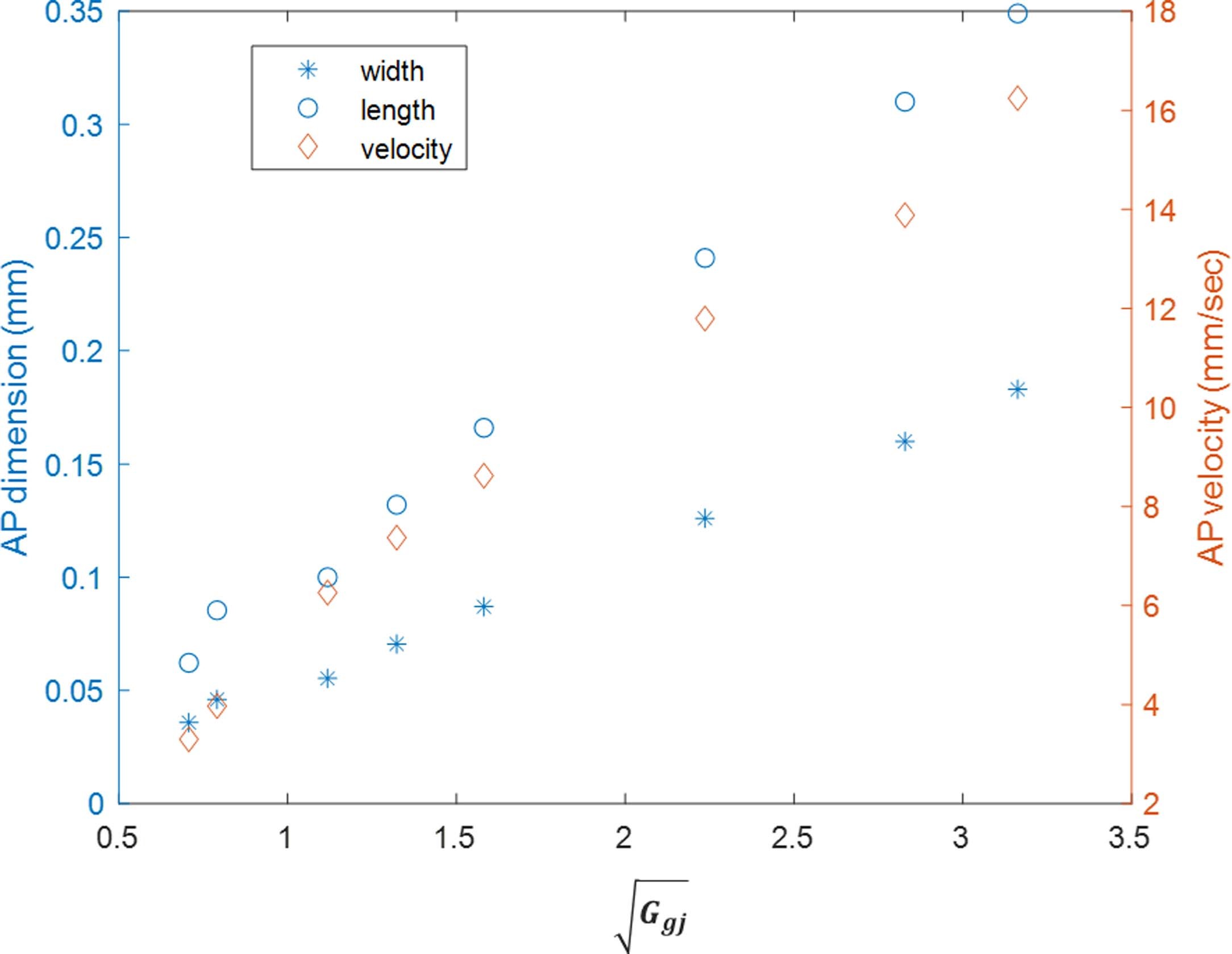

The left y-axis corresponds to the simulated width and length of the topological AP, measured at half peak. The right y-axis corresponds to the AP velocity, extracted from AP kymographs. As expected from dimensional analysis, all three quantities scale with \(\left( {G_{gj}} \right)^{\frac{1}{2}}\). Related to Fig. 2.
