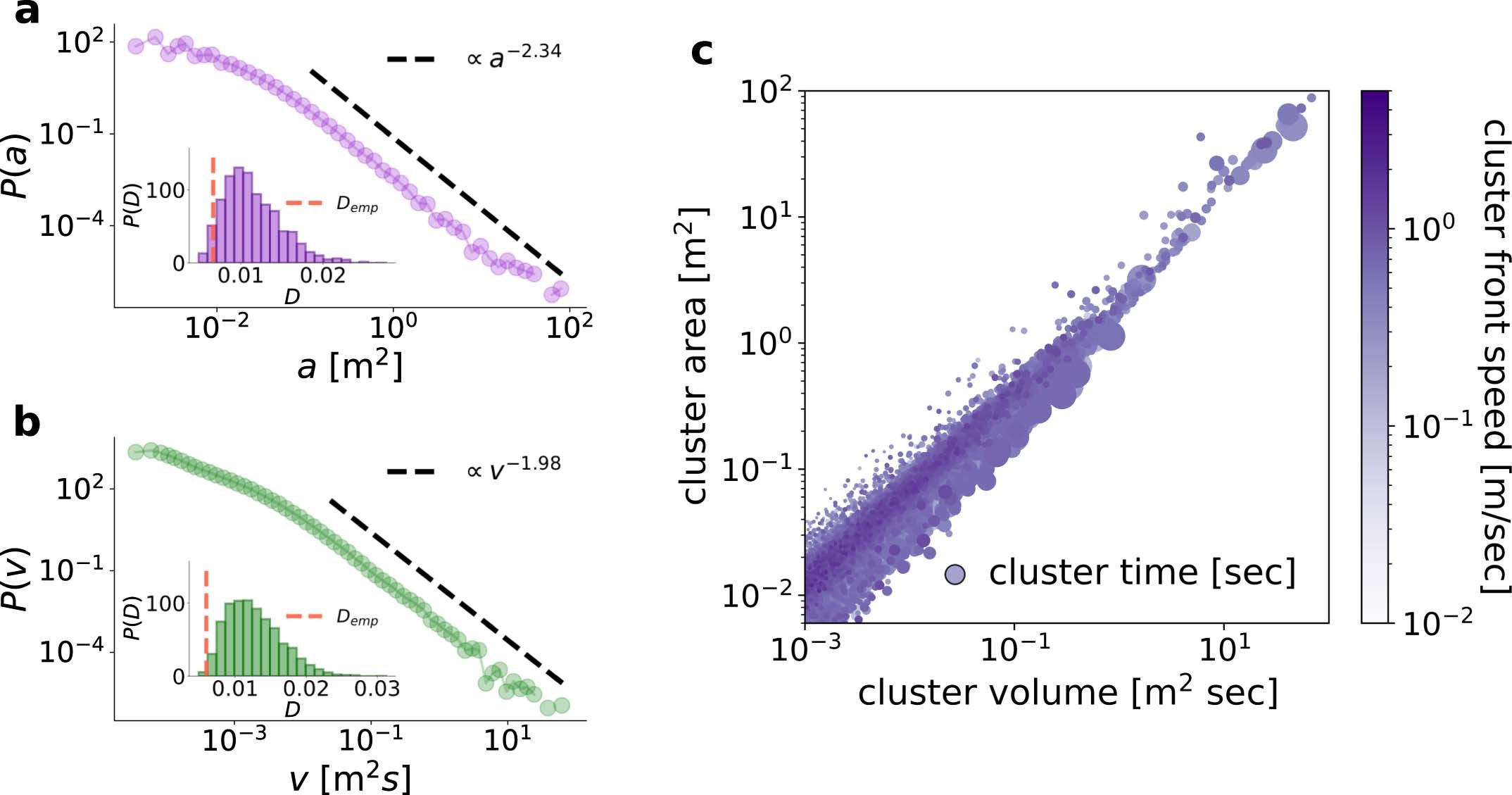

Extended Data Fig. 2: Power-law analysis of the empirical cluster distributions.
From: Fish shoals resemble a stochastic excitable system driven by environmental perturbations
a,b, Plots of the cluster areas distribution P(a) and the cluster volumes distribution P(v). In each plot, we present the distribution of KS distances P(D) obtained from the synthetic data that served us to calculate the corresponding p-values. The p-value for the cluster areas results to be p=0.044, and for the cluster volumes we obtain p=0.0056. c, Plot of the information of each cluster: area, speed, time-duration and volume.
