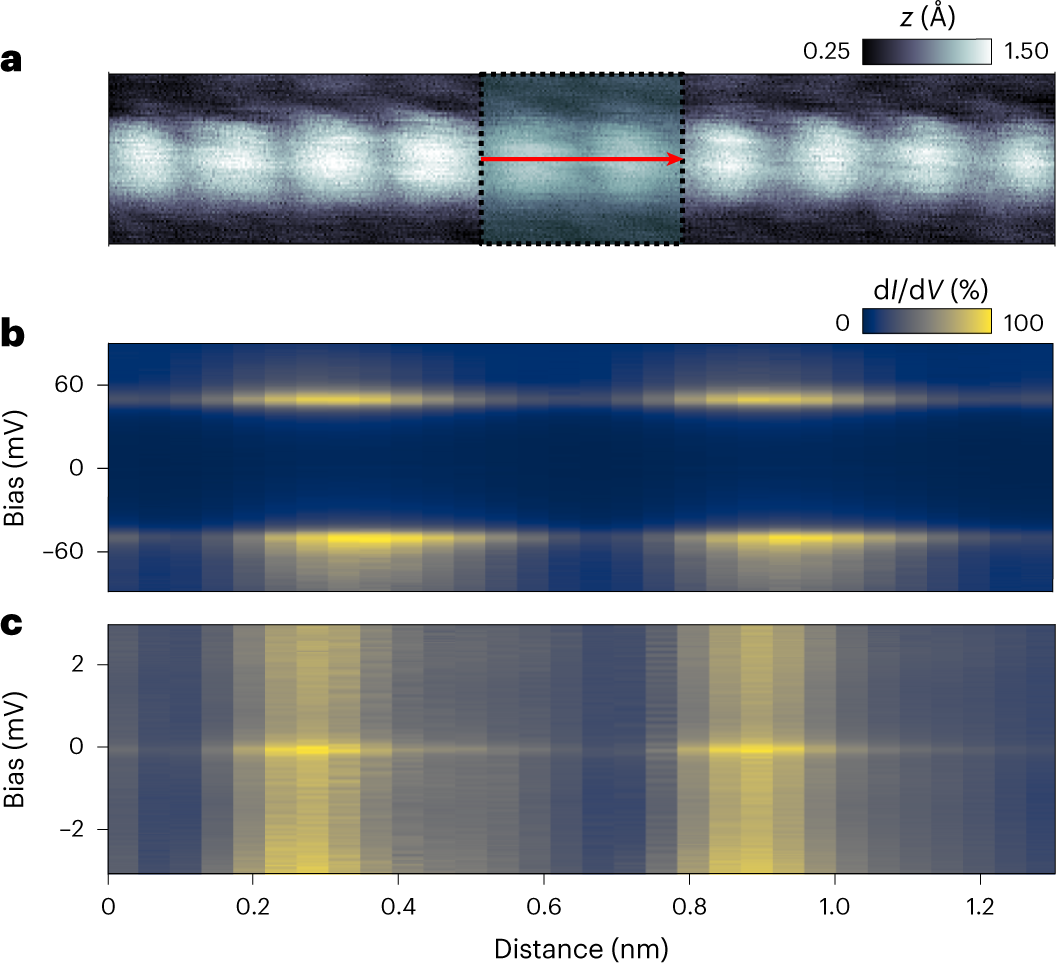

Fig. 4: Modulated Kondo screening along the particle in a box.
From: Modulated Kondo screening along magnetic mirror twin boundaries in monolayer MoS2
a, Topography along an MTB of L = 8.6 nm, ε = −51.00 meV, U = 100.00 meV, γ = 9.35 meV, showing the electronic beating of the confined state near EF. The red arrow indicates where the spectra shown in b and c were taken. b, Conductance colour map of the constant-height dI/dV spectra of the non-degenerate peaks along the MTB. c, Conductance colour map showing the constant-height dI/dV spectra of the Kondo resonance along the same path. STM/STS parameters: for a, 6.0 × 1.1 nm2, Vset = −10.0 mV, Iset = 5 pA; for b, Vset = 90.0 mV, Vmod = 1.0 mV; for c, Vset = 10 mV, Vmod = 0.2 mV. Iset = 0.5 nA for all the spectra.
