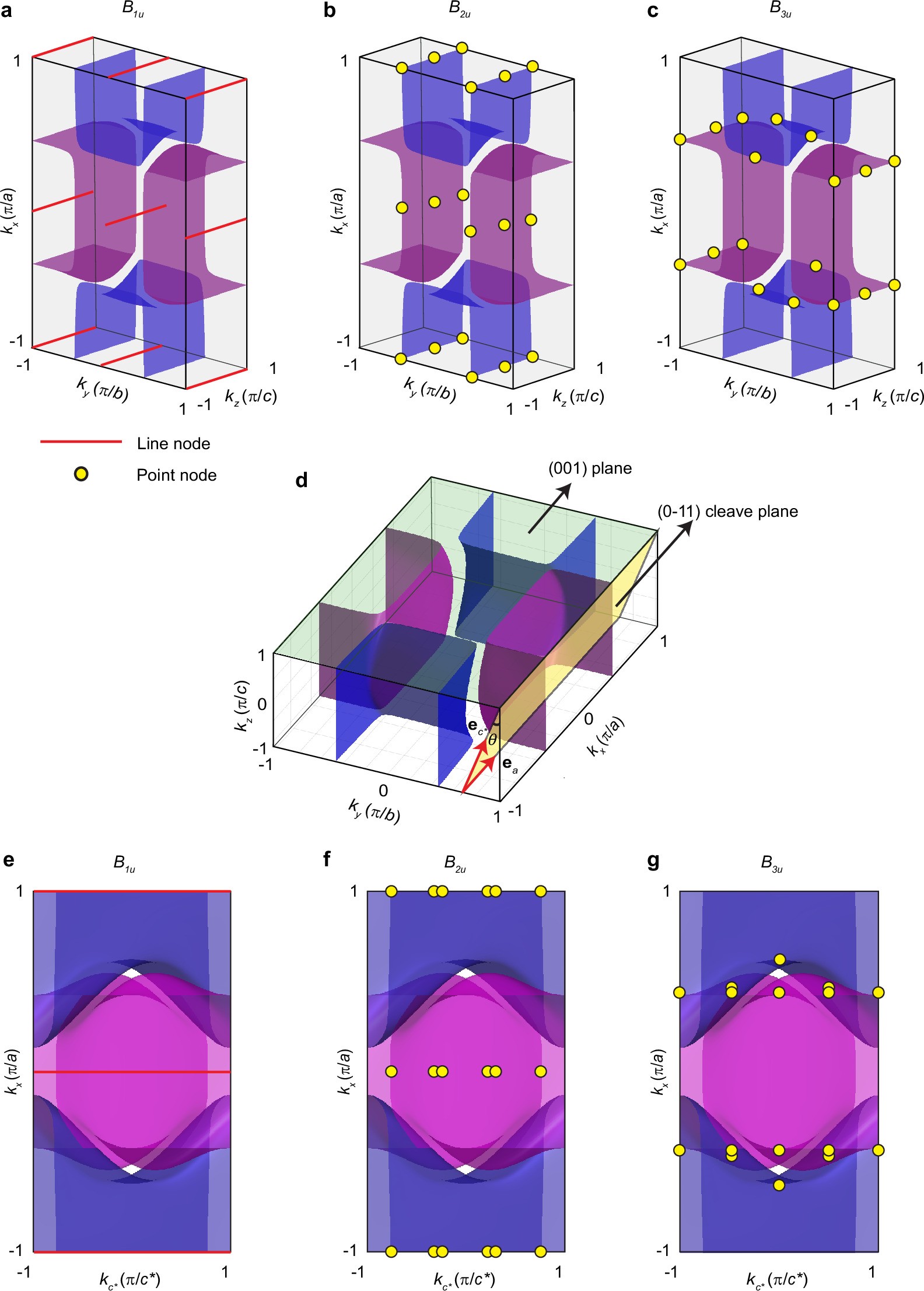

Extended Data Fig. 1: Projection of Fermi surfaces and gap nodes in B1u, B2u, and B3u.
From: Odd-parity quasiparticle interference in the superconductive surface state of UTe2
a-c. Bulk FS of UTe2 in 3D Brillion zone, showing the nodeless B1u gap, eight independent B2u gap nodes, and eight independent B3u gap nodes. The red lines indicate the location where the order parameter vanishes. d. Projection of the (001) plane (green) onto the (0-11) plane SBZ (yellow). e-g. Bulk FS of UTe2 projection onto the (0-11) plane SBZ, showing the B1u gap nodal lines, B2u gap nodes, and B3u gap nodes.
