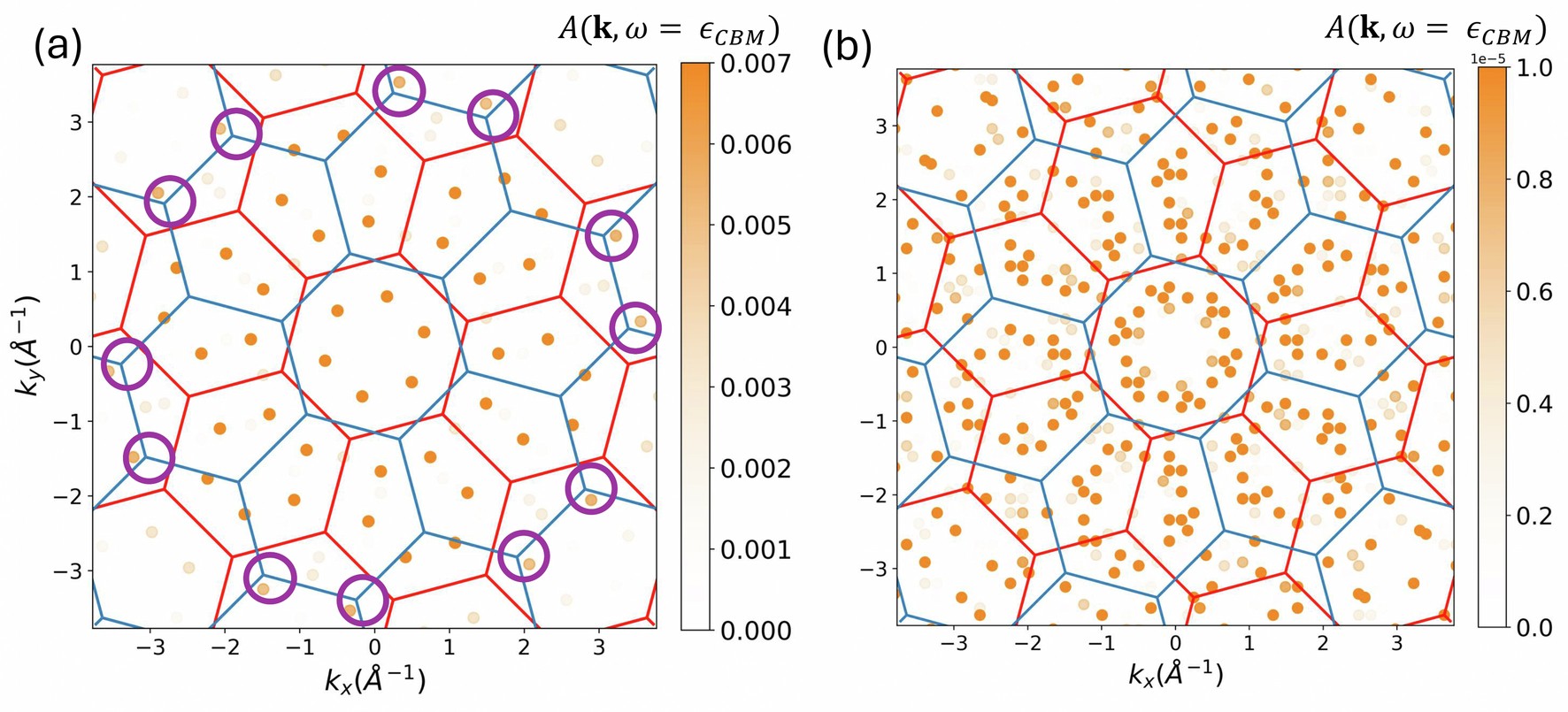

Extended Data Fig. 1: Calculated spectral function.
From: Field-tunable valley coupling in a dodecagonal semiconductor quasicrystal
Spectral intensity corresponding to conduction band minimum states arising from the six Qb valleys in 29.84° twisted bilayer WSe2 superlattice. (a) shows the lower order scatterings, with the circles highlighting the coupling between Qb + Gb and Kt + Gt. (b) shows the higher-order scatterings in the Brillouin zone in addition to those shown in (a). These scatterings have a much weaker spectral intensity.
