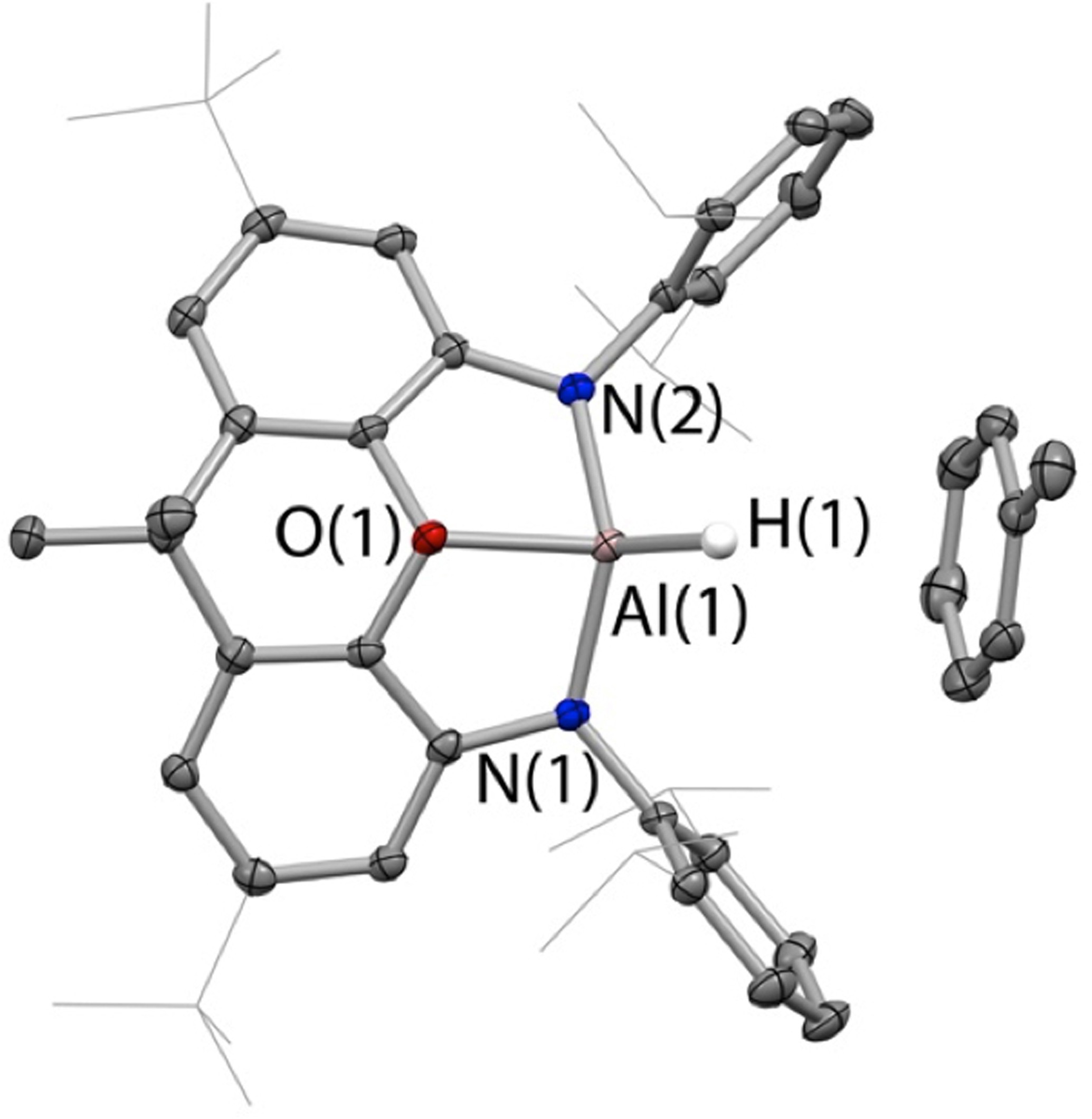

Extended Data Fig. 6: Molecular structure of (NON)AlH·toluene as determined by X-ray crystallography.
From: Synthesis, structure and reaction chemistry of a nucleophilic aluminyl anion
Most hydrogen atoms have been omitted and selected carbon atoms shown in wireframe format for clarity; thermal ellipsoids have been drawn at the 35% probability level. Key bond lengths (Å) and angles (°): Al(1)–N(1) 1.873(1), Al(1)–N(2) 1.872(1), Al(1)–O(1) 1.944(1), Al(1)–H(1) 1.49(2), N(1)–Al(1)–N(2) 134.1(1).
