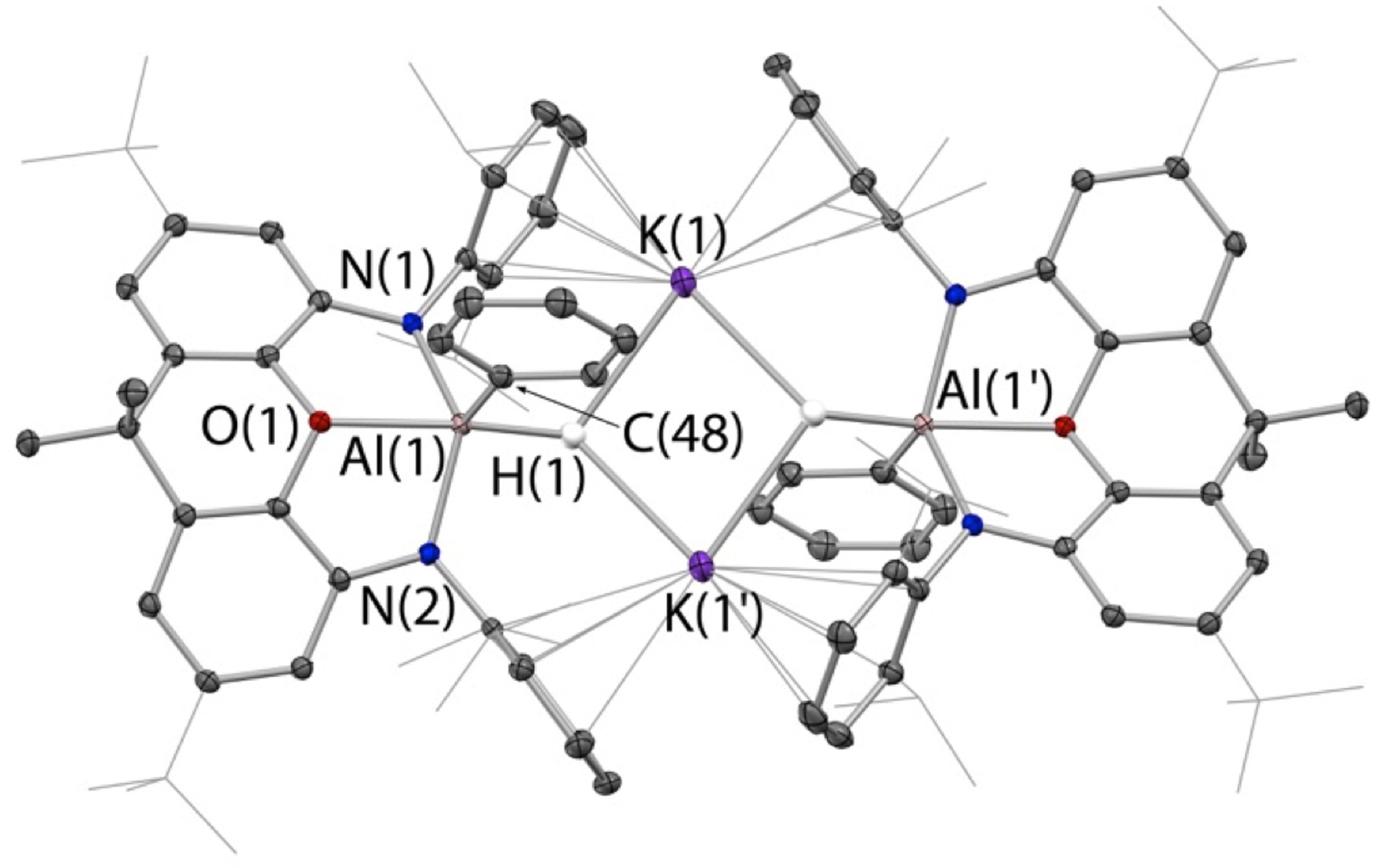

Extended Data Fig. 7: Molecular structure of [K{Ph(H)Al(NON)}]2 as determined by X-ray crystallography.
From: Synthesis, structure and reaction chemistry of a nucleophilic aluminyl anion
![Extended Data Fig. 7: Molecular structure of [K{Ph(H)Al(NON)}]2 as determined by X-ray crystallography.](http://media.springernature.com/full/springer-static/esm/art%3A10.1038%2Fs41586-018-0037-y/MediaObjects/41586_2018_37_Fig11_ESM.jpg?as=webp)
Most hydrogen atoms and benzene solvate molecules have been omitted, and selected carbon atoms shown in wireframe format for clarity; thermal ellipsoids have been drawn at the 35% probability level. Key bond lengths (Å) and angles (°): Al(1)–N(1) 1.945(2), Al(1)–N(2) 1.944(2), Al(1)–O(1) 2.122(1), Al(1)–C(48) 2.007(1), Al(1)–H(1) 1.82(3), N(1)–Al(1)–N(2) 132.2(1).
