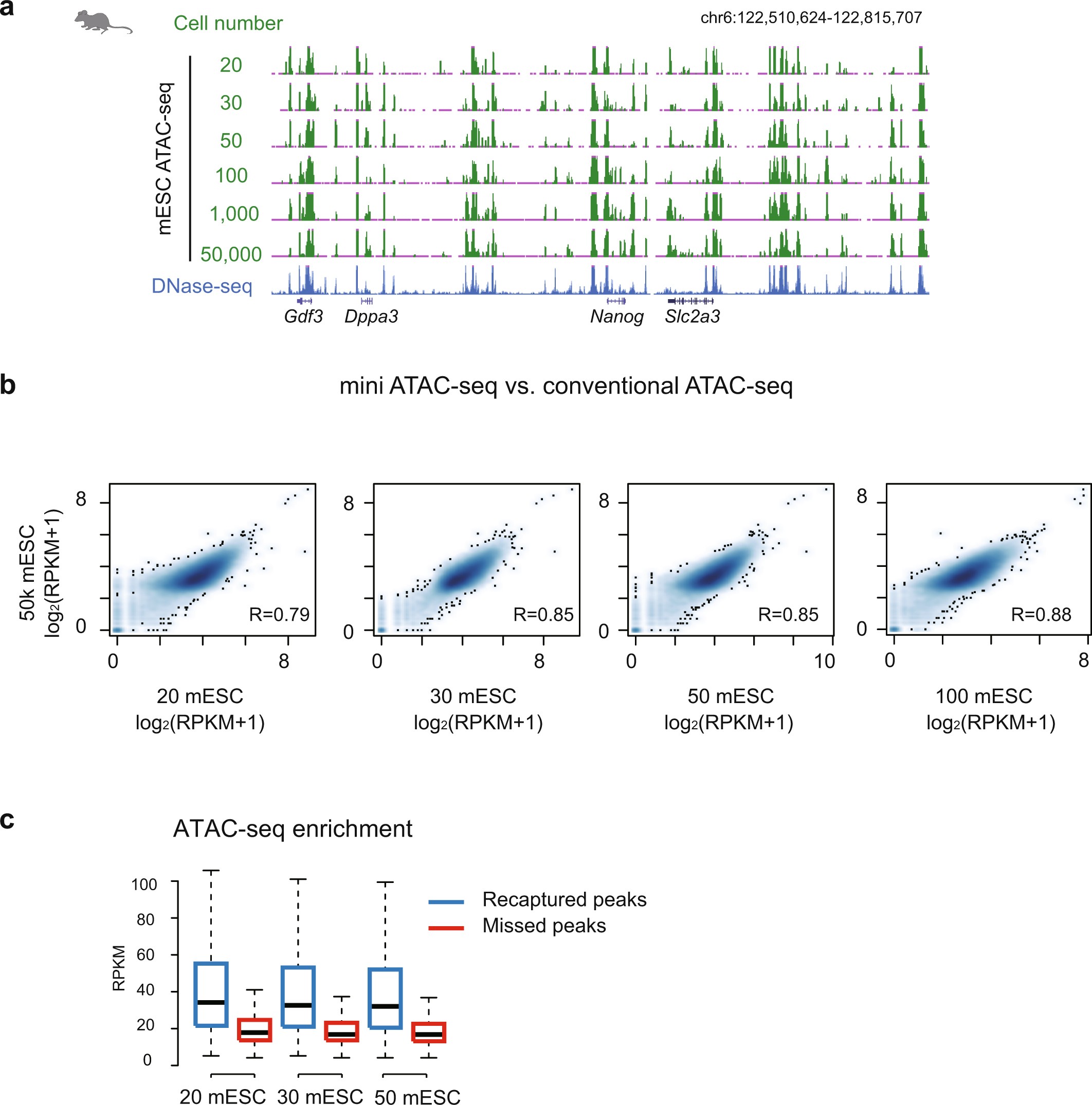

Extended Data Fig. 1: Validation of miniATAC-seq.
From: Chromatin analysis in human early development reveals epigenetic transition during ZGA
a, UCSC browser view showing the ATAC-seq signals using various numbers of mouse ES cells. b, Scatter plots comparing the miniATAC-seq signals from various numbers of mouse ES cells with conventional ATAC-seq using 50,000 mouse ES cells. The Pearson correlation coefficients are also shown. c, Box plots showing the ATAC-seq enrichment for peaks from 50,000 mouse ES cells that are recaptured or missed by miniATAC-seq using lower numbers of mouse ES cells.
