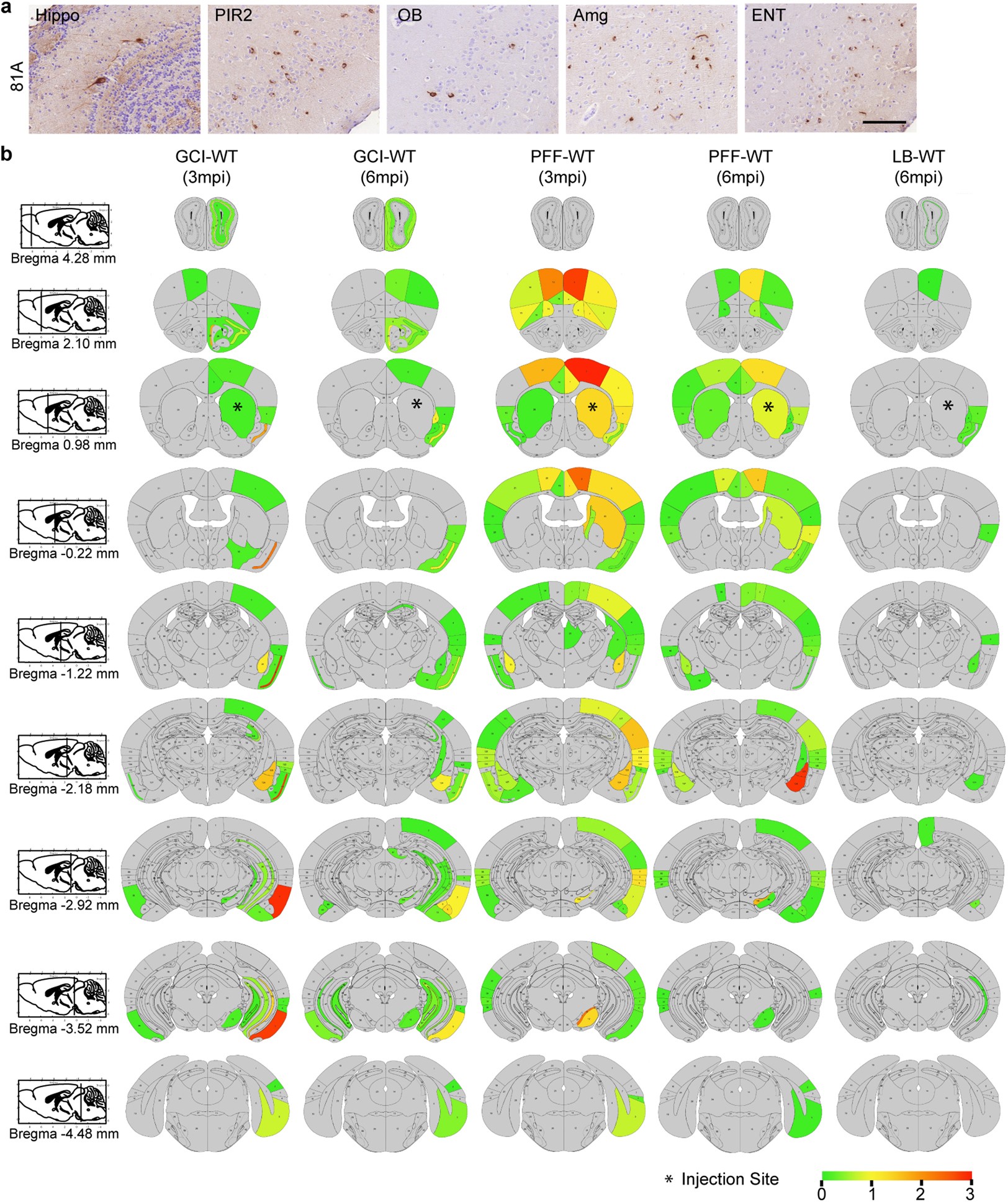

Extended Data Fig. 5: Distribution of α-Syn pathology in injected wild-type mice.

a, Representative photomicrographs of α-Syn pathologies stained by an antibody against pS129 α-Syn (81A) in multiple brain regions in GCI-α-Syn injected wild-type mice (experiment repeated three times). b, Heat map for the distribution of α-Syn pathology in wild-type mice injected with GCI-α-Syn, PFF or LB-α-Syn. GCI-α-Syn, LB-α-Syn and α-Syn PFF were unilaterally injected into the dorsal striatum of wild-type mice. The seeded α-Syn pathology was analysed and graded by immunohistochemistry with Syn506. The data were presented as heat maps to semiquantitatively demonstrate the central nervous system (CNS) distribution of α-Syn pathology. Each panel represents a coronal plane (bregma 4.28, 2.10, 0.98, −0.22, −1.22,−2.18, −2.92, −3.52 and −4.48 mm) for each treatment group (GCI-WT, n = 3 mice; PFF-WT, n = 4 mice; LB-WT, n = 3 mice). Scale bar: 100 μm.
