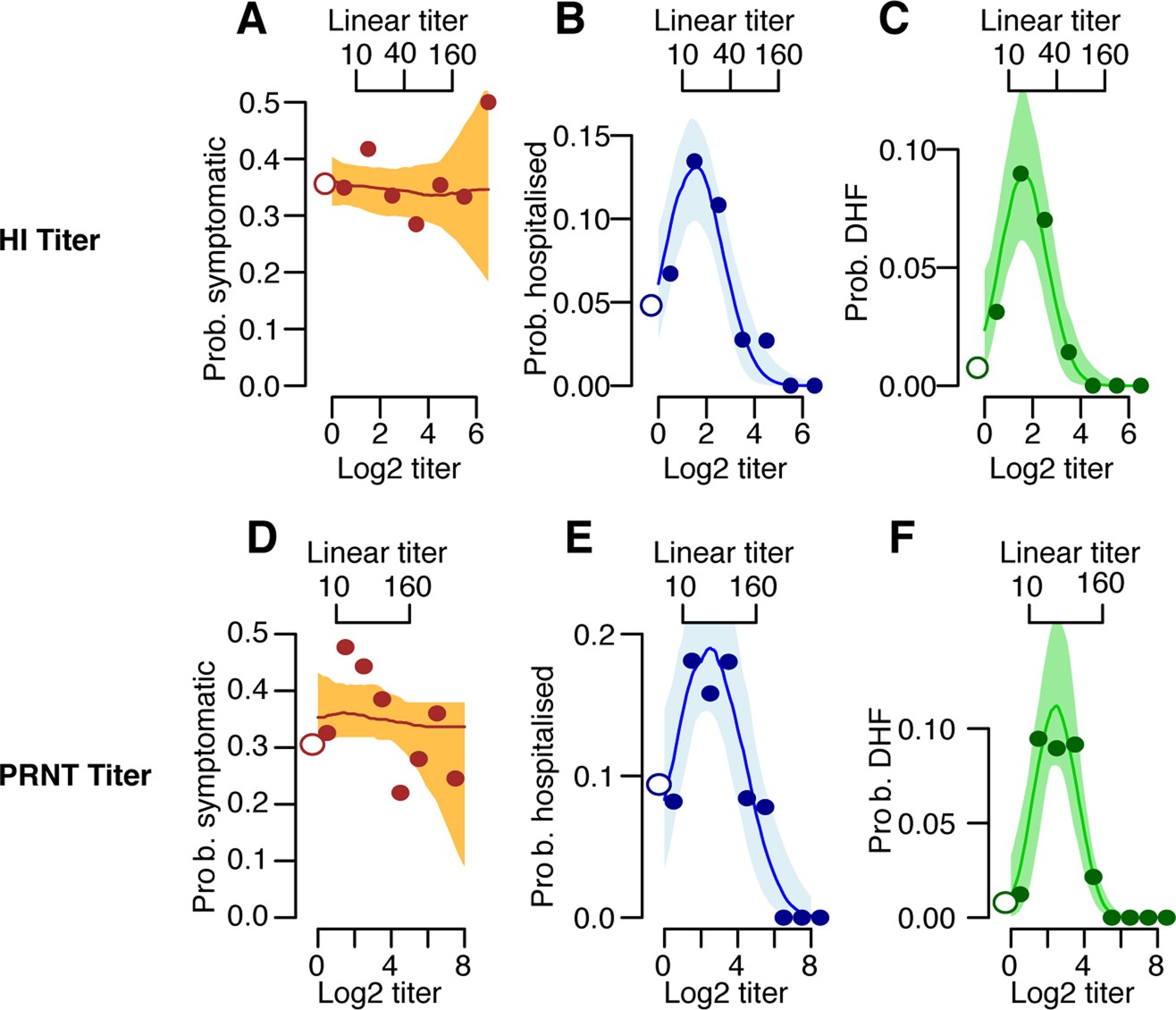

Extended Data Fig. 6: Probability of disease as a function of haemagglutination inhibition and PRNT titre.
From: Reconstruction of antibody dynamics and infection histories to evaluate dengue risk
Probability of disease as a function of mean titre across the four serotypes at the time of infection. a, For those infected during the surveillance windows, the probability of developing any symptoms as a function of mean titre (n = 781). b, For those infected during the surveillance windows, the probability of being hospitalized (n = 781). c, For those infected during the surveillance windows, the probability of developing DHF as a function of mean titre (n = 781). d, For those infected during the surveillance windows (n = 781), the probability of developing any symptoms as a function of mean PRNT titre. e, For those infected, the probability of being hospitalized as a function of mean PRNT titre. f, For those infected, the probability of developing DHF as a function of mean PRNT titre. In each panel, the open circles on the left represent primary infections. The shaded region represents 95% confidence intervals.
