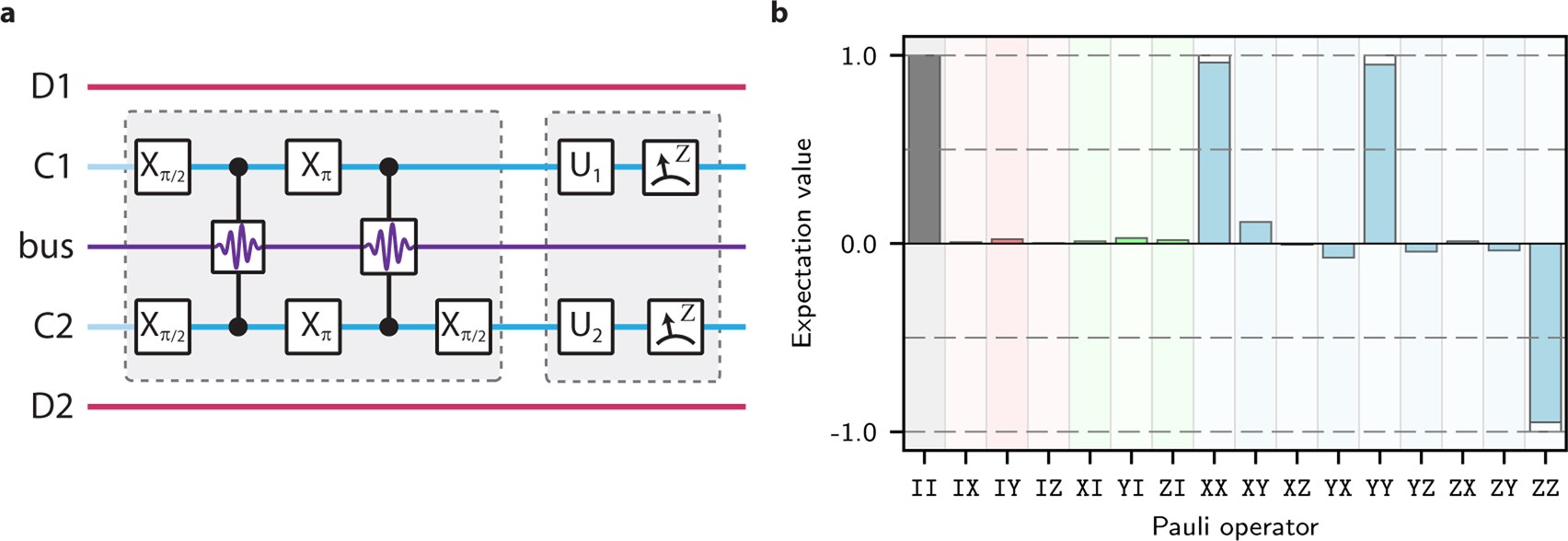

Extended Data Fig. 4: Communication-qubit Bell state.
From: Deterministic teleportation of a quantum gate between two logical qubits
a, Pulse sequence for generating the communication-qubit Bell pair. After generating the Bell state (first block), quantum state tomography is performed on both of the qubits to assess the quality of the entangled state. b, Characterizing the communication-qubit Bell pair. Experimentally measured Pauli vector components of the two communication qubits are shown. The generated state is \((| ge\rangle +| eg\rangle )/2\), with the ideal values denoted as hollow bars.
