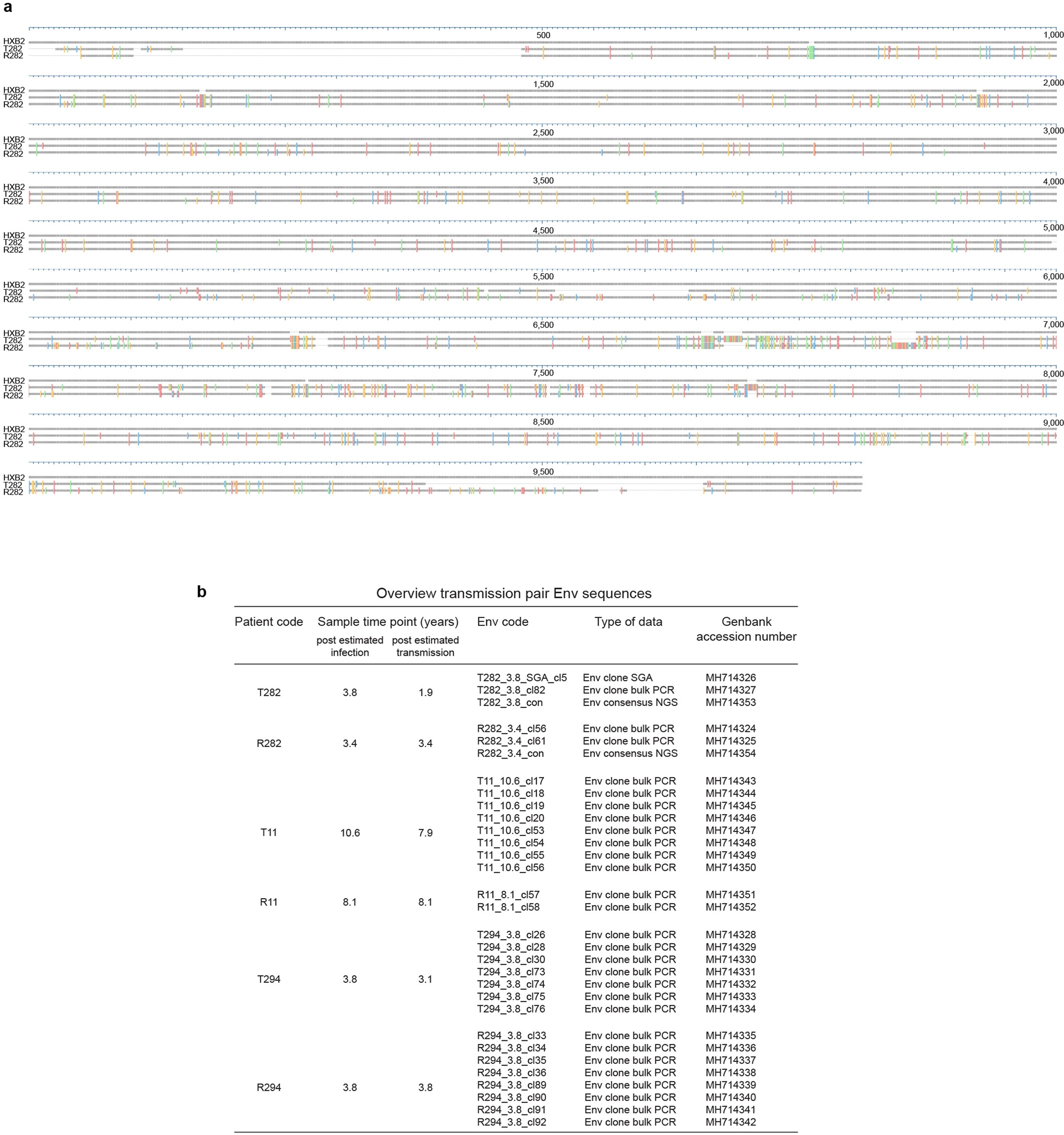

Extended Data Fig. 6: Full-genome comparison of T282 and R282 consensus sequences.
From: Tracing HIV-1 strains that imprint broadly neutralizing antibody responses
a, Multiple sequence alignment of the full genome consensus sequences of T282 and R282 with HXB2. Nucleotide variations from HXB2 are depicted by colour: A (red), T (green), C (blue), G (yellow); deletions by a horizontal bar. b, Overview and accession codes of env sequences derived from three bNAb-imprinting transmission pairs depicted in Fig. 2c. Indicated transmission time estimate is based on estimated time of infection of recipient.
