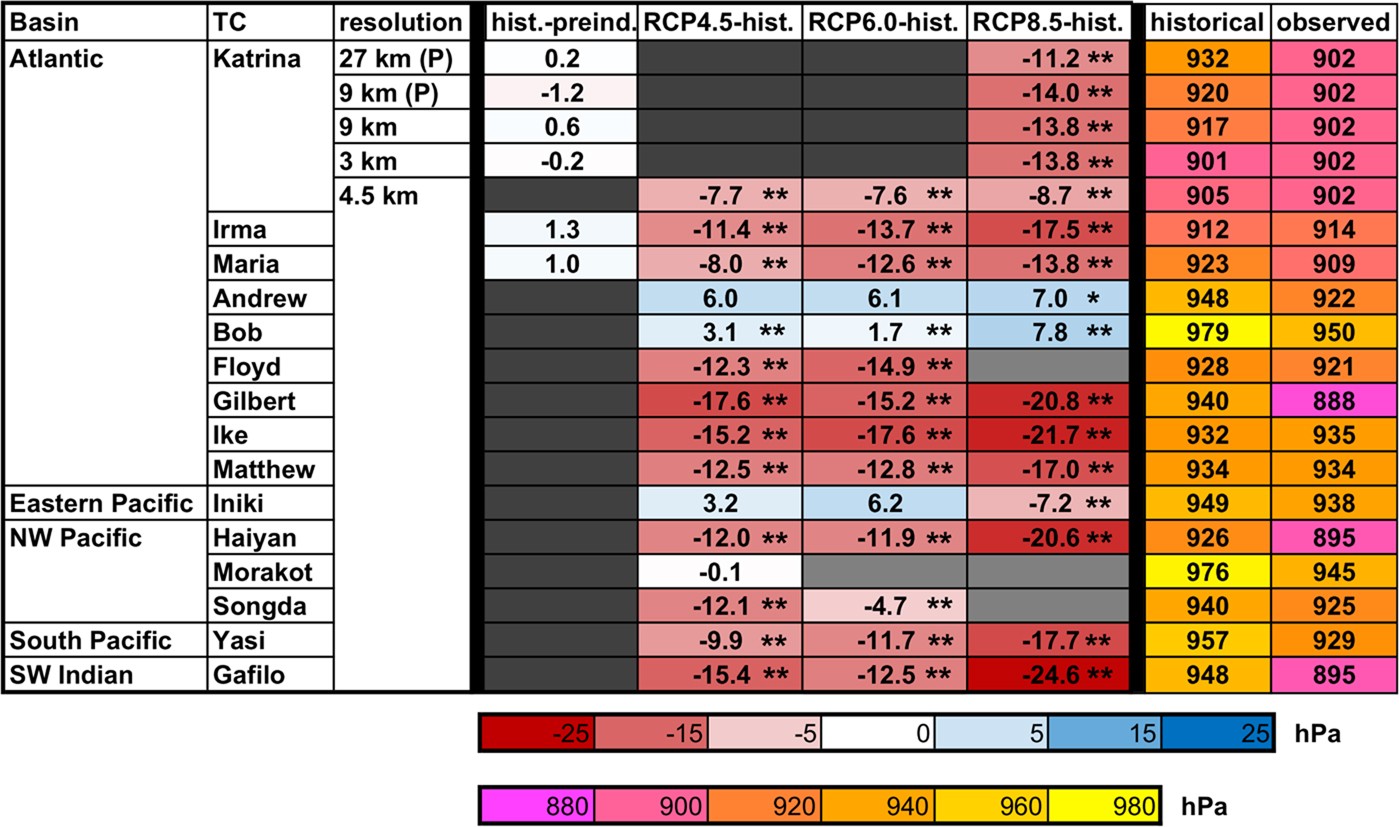

Extended Data Fig. 3: Tropical cyclone minimum SLP.
From: Anthropogenic influences on major tropical cyclone events
Heatmaps are shown of the ensemble-mean difference in minimum SLP (in hPa) between the historical and pre-industrial simulations and between the RCP4.5, RCP6.0 and RCP8.5 simulations and the historical simulation (blue/red), with minimum SLP from observations and the ensemble-mean historical simulation (yellow/magenta). Light grey denotes substantial differences between the simulated and the observed tropical cyclone tracks and dark grey denotes simulations that were not performed. *Changes significant at the 10% level; **changes significant at the 5% level. Simulations that used convective parameterization are denoted ‘P’.
