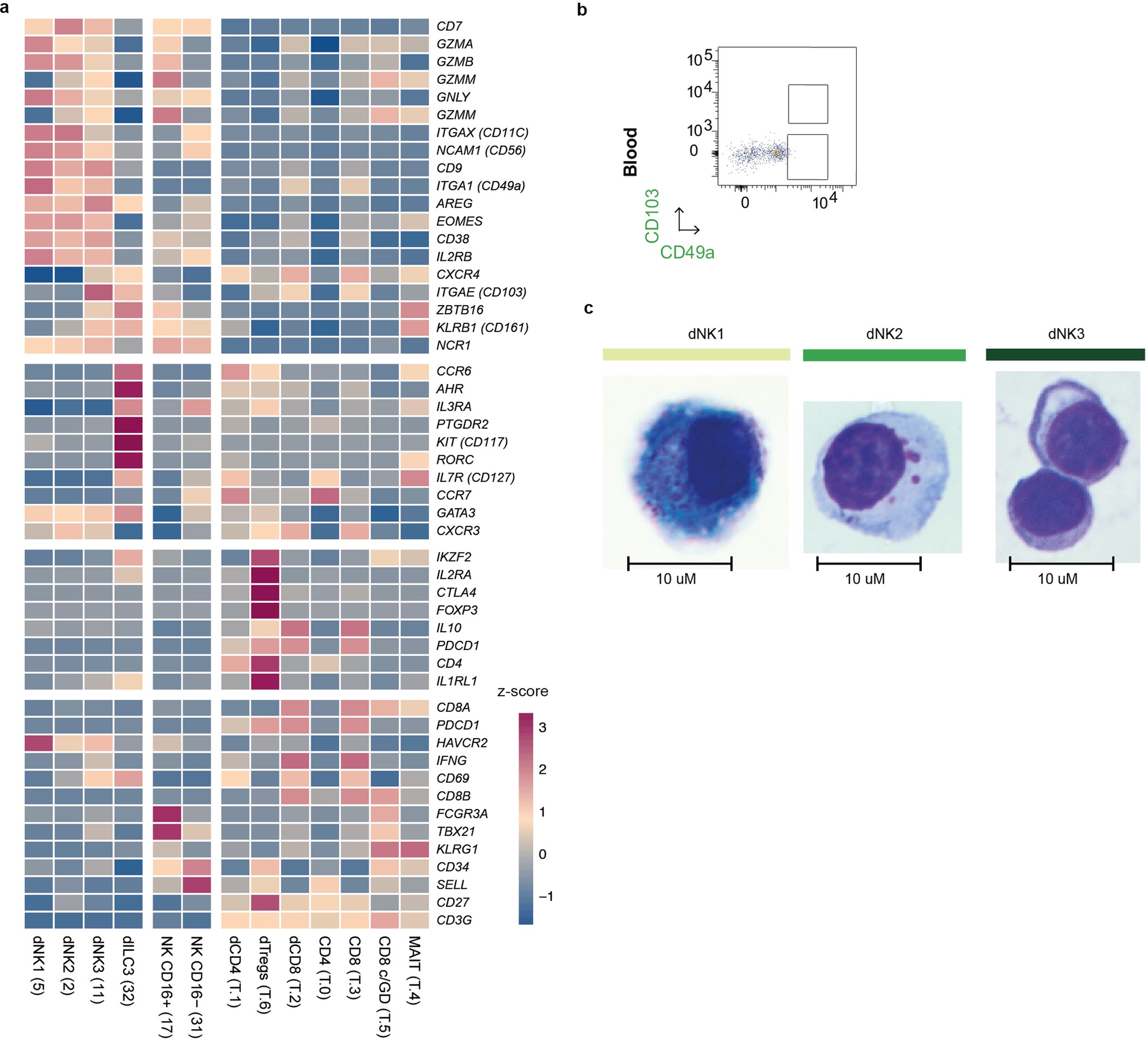

Extended Data Fig. 8: Lymphocyte populations in the decidua.
From: Single-cell reconstruction of the early maternal–fetal interface in humans
a, Heat map showing z-scores of the mean log-transformed, normalized expression of selected genes in the lymphocyte populations. Proliferating dNK cells (dNKp) are excluded from the analysis (n = 11 deciduas). b, FACS gating strategy in Fig. 5 applied in matched blood. Matched blood for the sample shown in Fig. 5 (n = 2 biological replicates). c, Morphology of dNK1, dNK2 and dNK3 subsets by Giemsa–Wright stain after cytospin (representative data from 1 of n = 2 biological replicates are shown). Scale bar, 10 μm.
