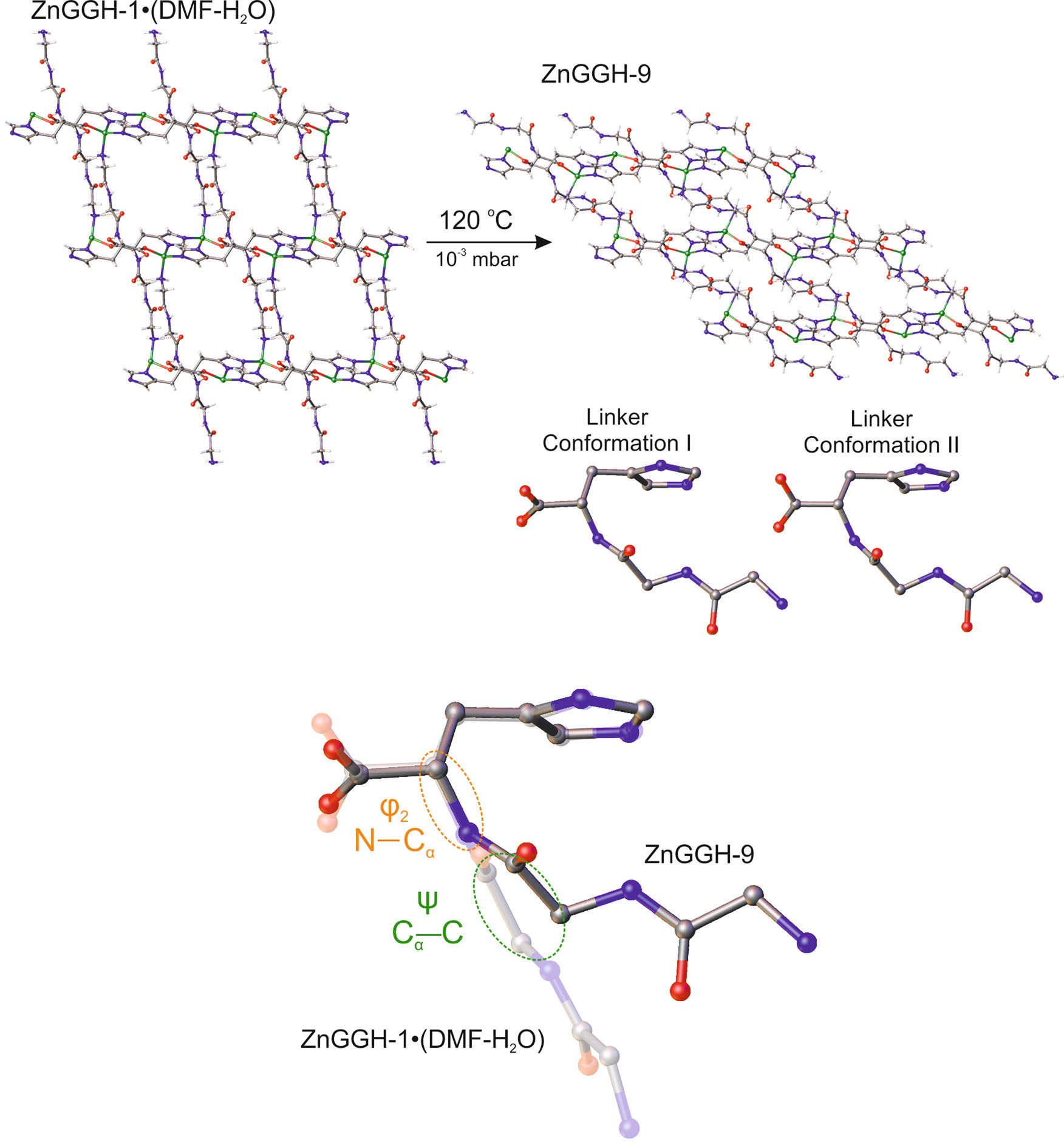

Extended Data Fig. 5: Structure and linker conformation of collapsed ZnGGH-9.
From: Chemical control of structure and guest uptake by a conformationally mobile porous material
The collapsed structure ZnGGH-9 is produced by removing the solvents from ZnGGH-1⋅(DMF-H2O). In ZnGGH-9, the linker adopts two very similar folded conformations. These conformational changes are realized by the torsions φ2 of histidine and ψ of the central glycine.
