Extended Data Fig. 2: Capturing early differentiation by pooled sequencing of indels generated within an E9.5 embryo. | Nature

Extended Data Fig. 2: Capturing early differentiation by pooled sequencing of indels generated within an E9.5 embryo.

From: Molecular recording of mammalian embryogenesis

Extended Data Fig. 2

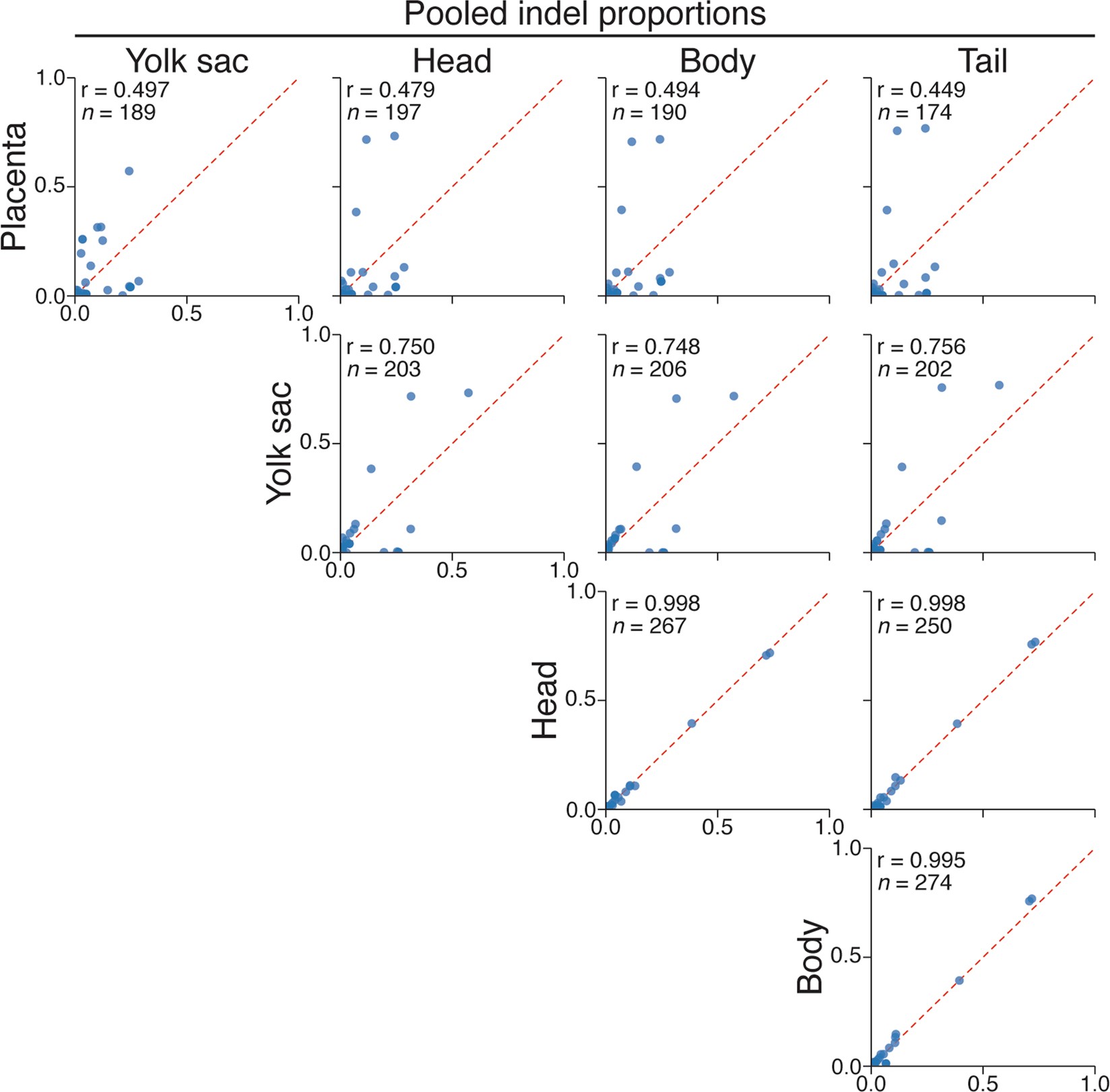

Scatter plots of indel proportions from dissected bulk tissue of an E9.5 embryo. Placenta is the most distantly related from embryonic tissues, followed by the yolk sac; the three embryonic compartments share the highest similarity. n, number of indels used in the comparison; r, Pearson correlation of the relative indel proportions. Each of the three sites is considered independently per intBC. A heat map representing the correlation coefficients appears in Fig. 2b.
