Extended Data Fig. 8: Phase-field simulations for different shapes of pillars.
From: Archimedean lattices emerge in template-directed eutectic solidification

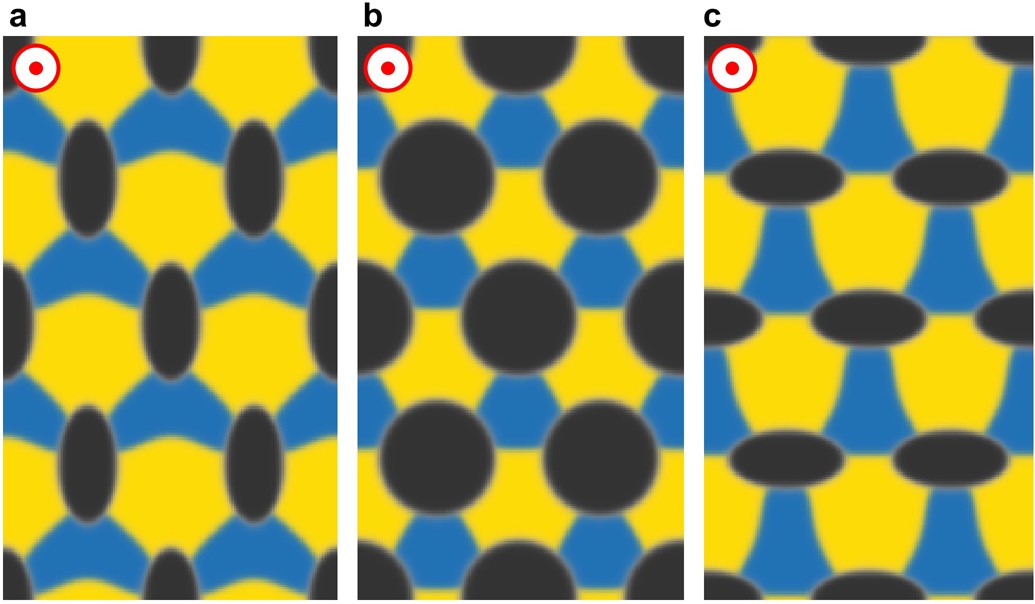

a–c, A variety of patterns in templated-eutectic obtained by changing the shapes and orientations of the pillars: a, oval; b, circle; c, same as a but rotated by 90°. Characteristic features depend on the pillar shape and orientation. The solidification direction is out of the image (z axis), as indicated by the red dotted circle. The images show the x–y plane cross-section of the simulation domain repeated once in each direction. The template pillars are displayed as black, AgCl as yellow, and KCl as blue.
