Extended Data Fig. 21: Global view of DNA and RNA alterations affecting cancer pathways.

From: Genomic basis for RNA alterations in cancer

Extended Data Fig. 21

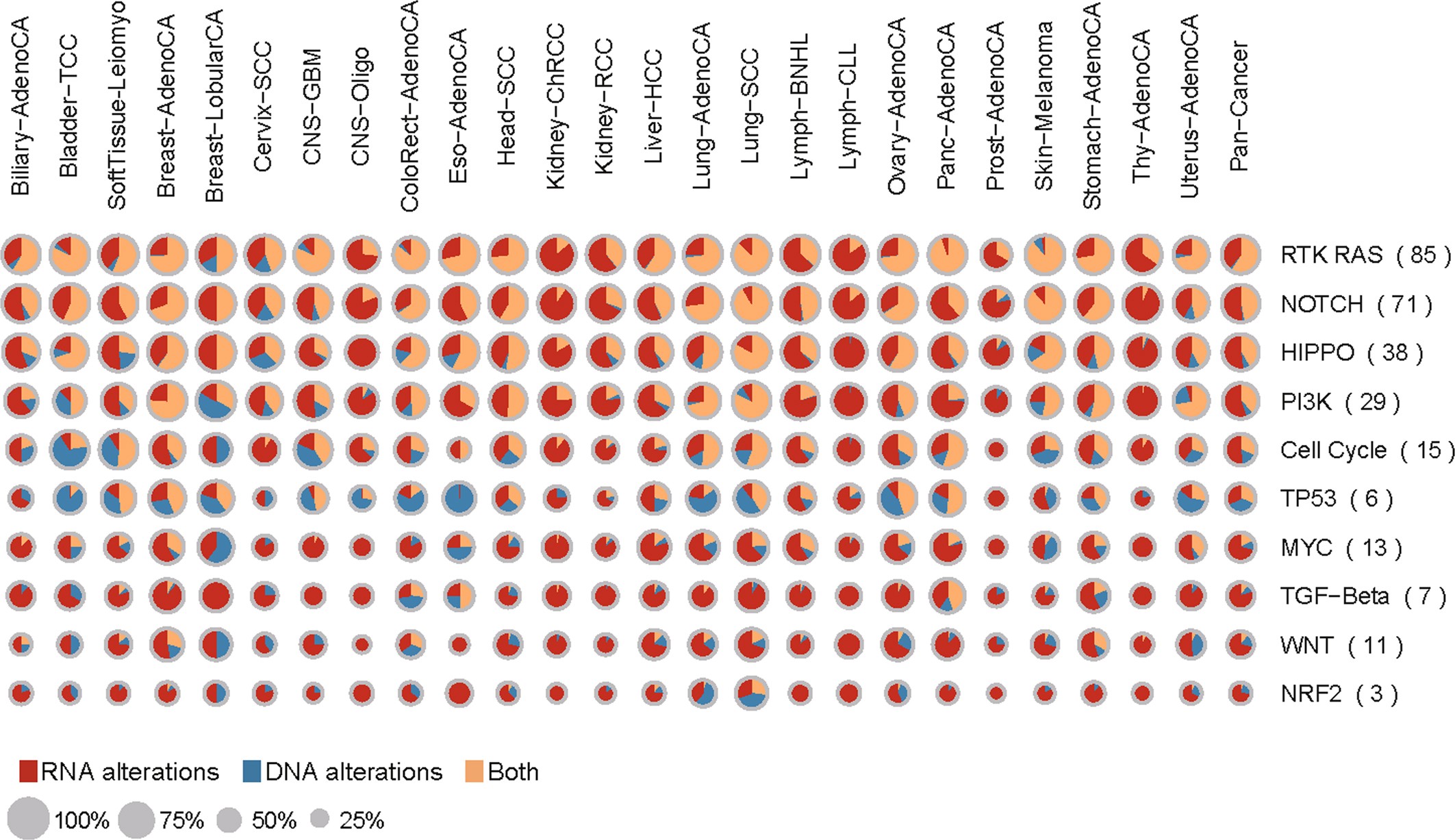

Composite pie charts showing the percentages of RNA alterations, DNA alterations or both, affecting sets of genes in well-characterized cancer pathways and known to be functionally altered in cancer. The sizes of circles represent the percentages of patients affected based on the given gene set. The columns indicate different types of cancer. The numbers in parenthesis indicate the number of genes analysed for the specific pathway.
