Extended Data Fig. 3: Germline eQTL lead variants.

From: Genomic basis for RNA alterations in cancer

Extended Data Fig. 3

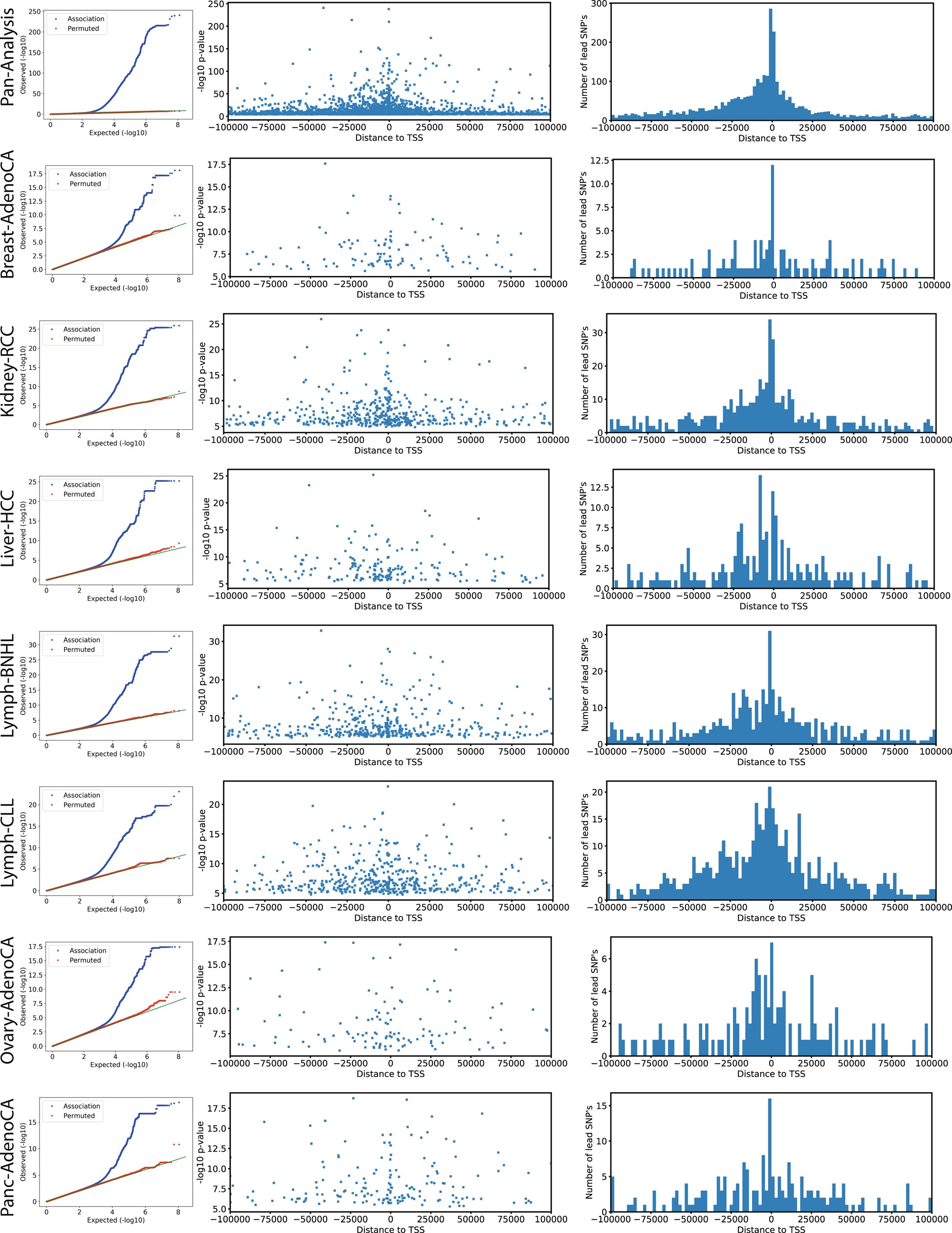

Left, quantile–quantile (Q–Q) plot of P values of germline eQTL lead variants in the pan-cancer and histotype-specific analysis (FDR ≤ 5%, blue) and P values of the same analysis after permutation (random permutation of patients, red). Middle and right, distributions of distance to the respective TSS of all germline eQTL lead variants in the pan-cancer and histotype-specific analysis.
