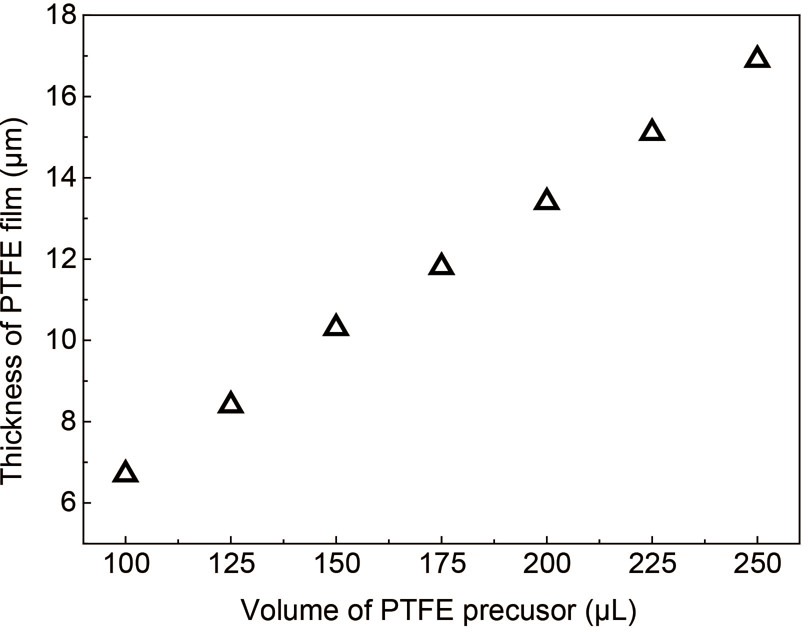

Extended Data Fig. 9: Thickness of PTFE film as a function of the volume of PTFE precursor.
From: A droplet-based electricity generator with high instantaneous power density
The thickness of the PTFE film increases linearly from 6.7 μm to 16.9 μm as the volume of PTFE precursor increases from 100.0 μl to 250.0 μl.
