Extended Data Fig. 5: Mean and standard deviation of the CLO-estimated predicted distribution over cycle lives after round 4.
From: Closed-loop optimization of fast-charging protocols for batteries with machine learning

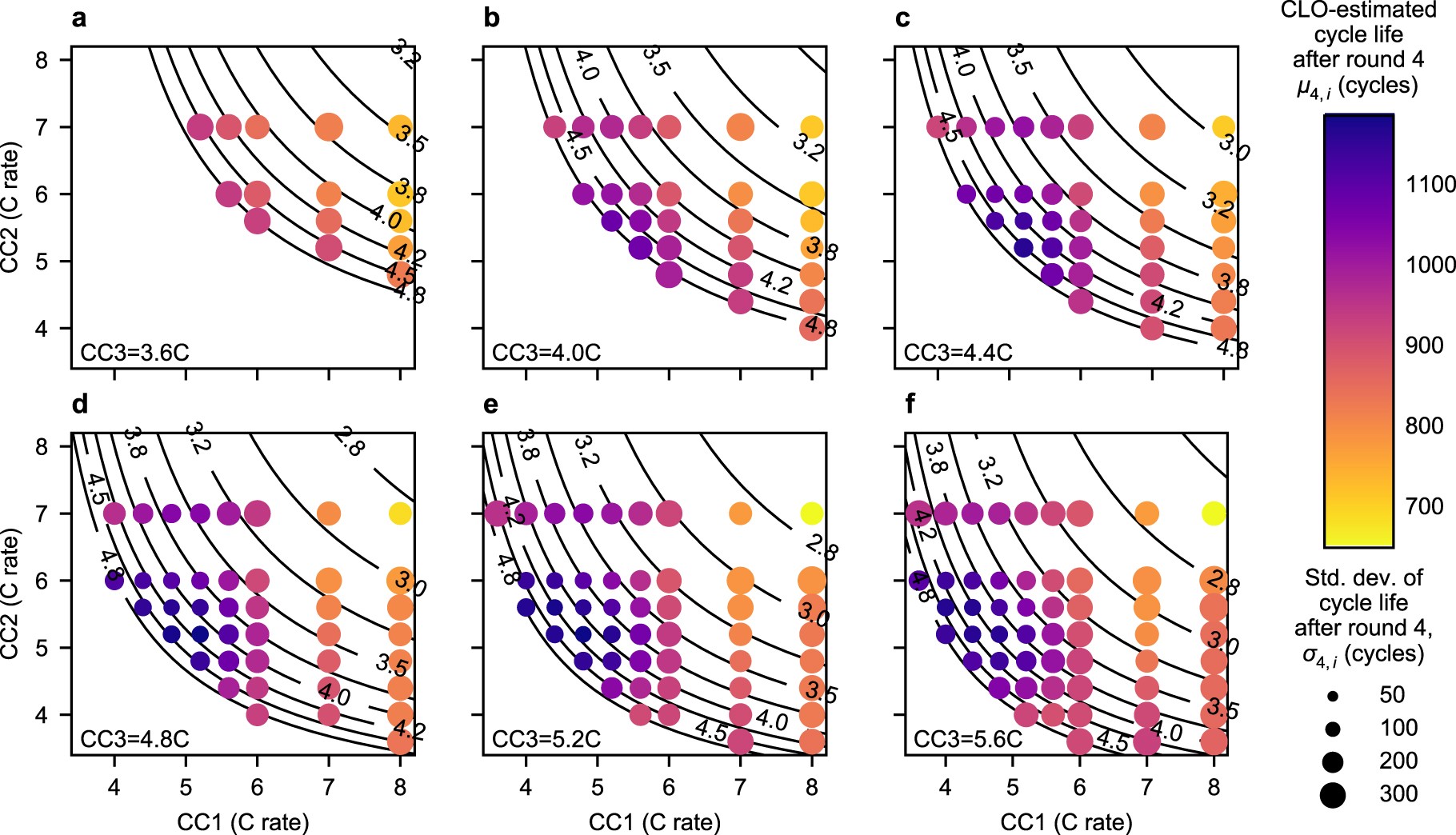

In this two-dimensional representation, mean estimated cycle life (colour scale) and standard deviation of cycle life (marker size) after round 4 are presented as a function of CC1, CC2 and CC3 (the x axis, y axis and panels a–f, respectively). Panels a–f represent CC3 = 3.6C, 4.0C, 4.4C, 4.8C, 5.2C, 5.6C and 6.0C, respectively. CC4 is represented by the contour lines. Note that the protocols with the highest cycle lives generally have the smallest standard deviations, since these protocols have been tested repeatedly.
