Extended Data Fig. 7: Light-cone calculations of the nuclear spectral function and momentum fractions.

From: Probing the core of the strong nuclear interaction

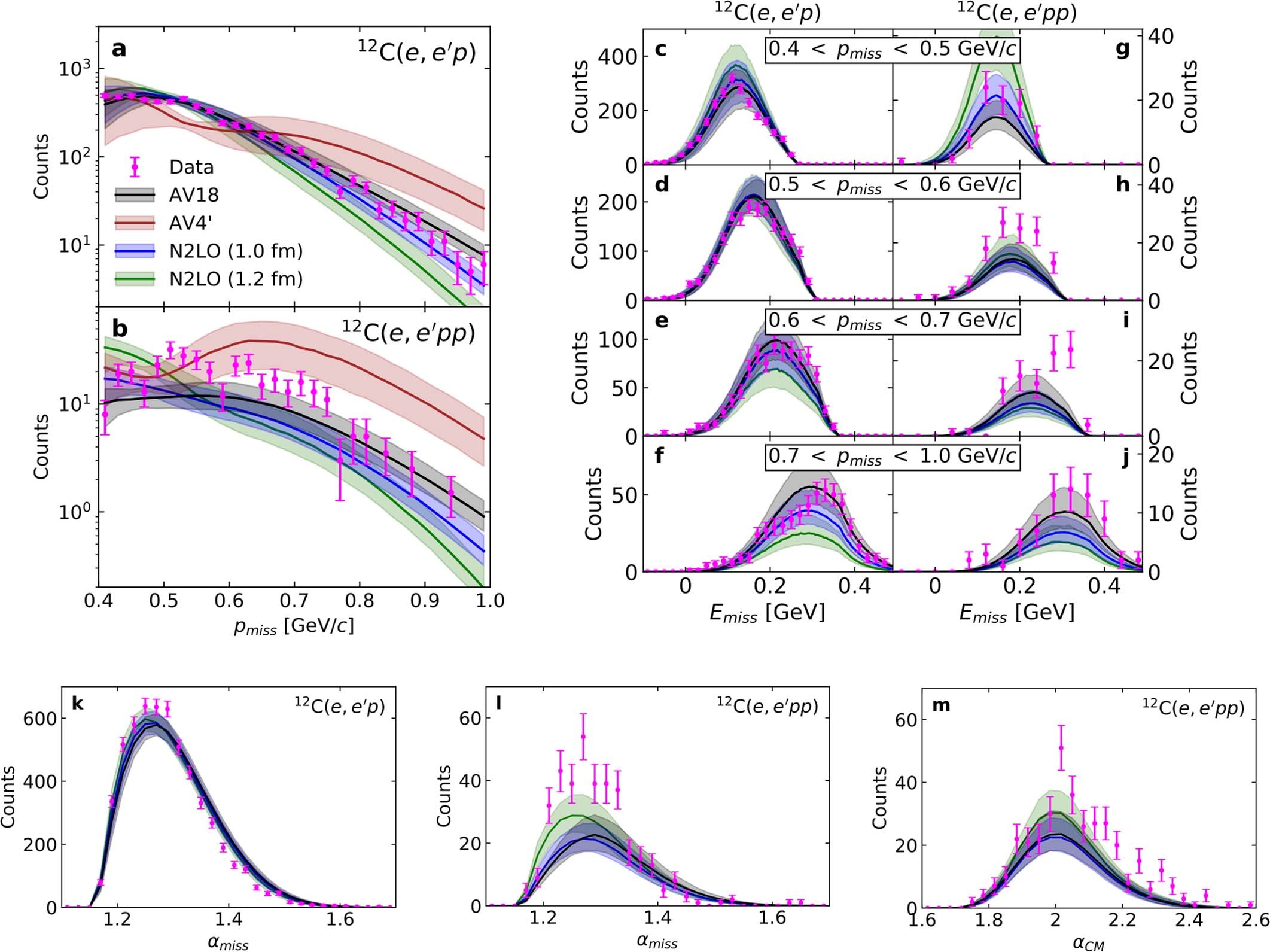

Extended Data Fig. 7: Light-cone calculations of the nuclear spectral function and momentum fractions.

a–j, As in Fig. 3a–j. k, l, The reconstructed initial light-cone momentum fraction carried by the struck nucleon for (e, e′p) (k) and (e, e′pp) (l) events. m, The total pair light-cone momentum fraction for (e, e′pp) events. The data points are identical to those in Fig. 3a–j. The bands are different and show the results of the GCF calculations using light-cone formalism and various NN interaction models. The width of the shaded band and the data error bars show the model systematic uncertainties and data statistical uncertainties, respectively, each at the 1σ confidence level.
