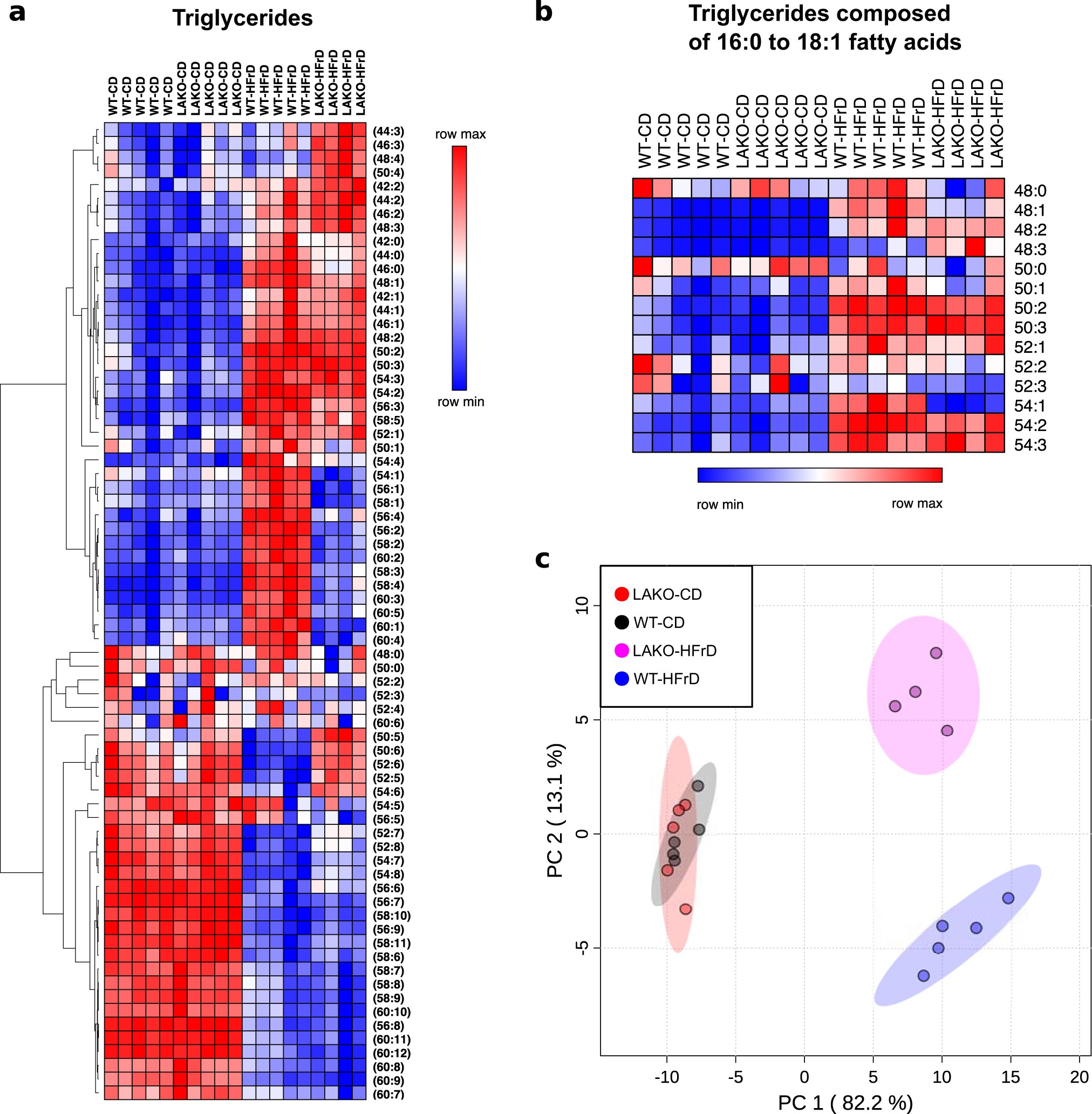

Extended Data Fig. 3: A high-fructose diet alters hepatic lipid metabolism.
From: Dietary fructose feeds hepatic lipogenesis via microbiota-derived acetate
a, Hierarchical clustering of relative hepatic triglyceride abundance in wild-type or LAKO mice on a chow diet (CD) or high fructose diet (HFrD) for 4 weeks. Clustering performed using 1 − Pearson’s correlation and average linkage. b, Relative abundance of hepatic triglycerides composed of 16:0 to 18:1 fatty acids; a subset of the data in a. c, Principle component analysis of log-transformed data in Supplementary Table 2. Each dot represents a unique sample; coloured shading denotes 95% confidence intervals.
