Extended Data Fig. 9: Finite element simulation results of SENB tests.
From: Hierarchically structured diamond composite with exceptional toughness

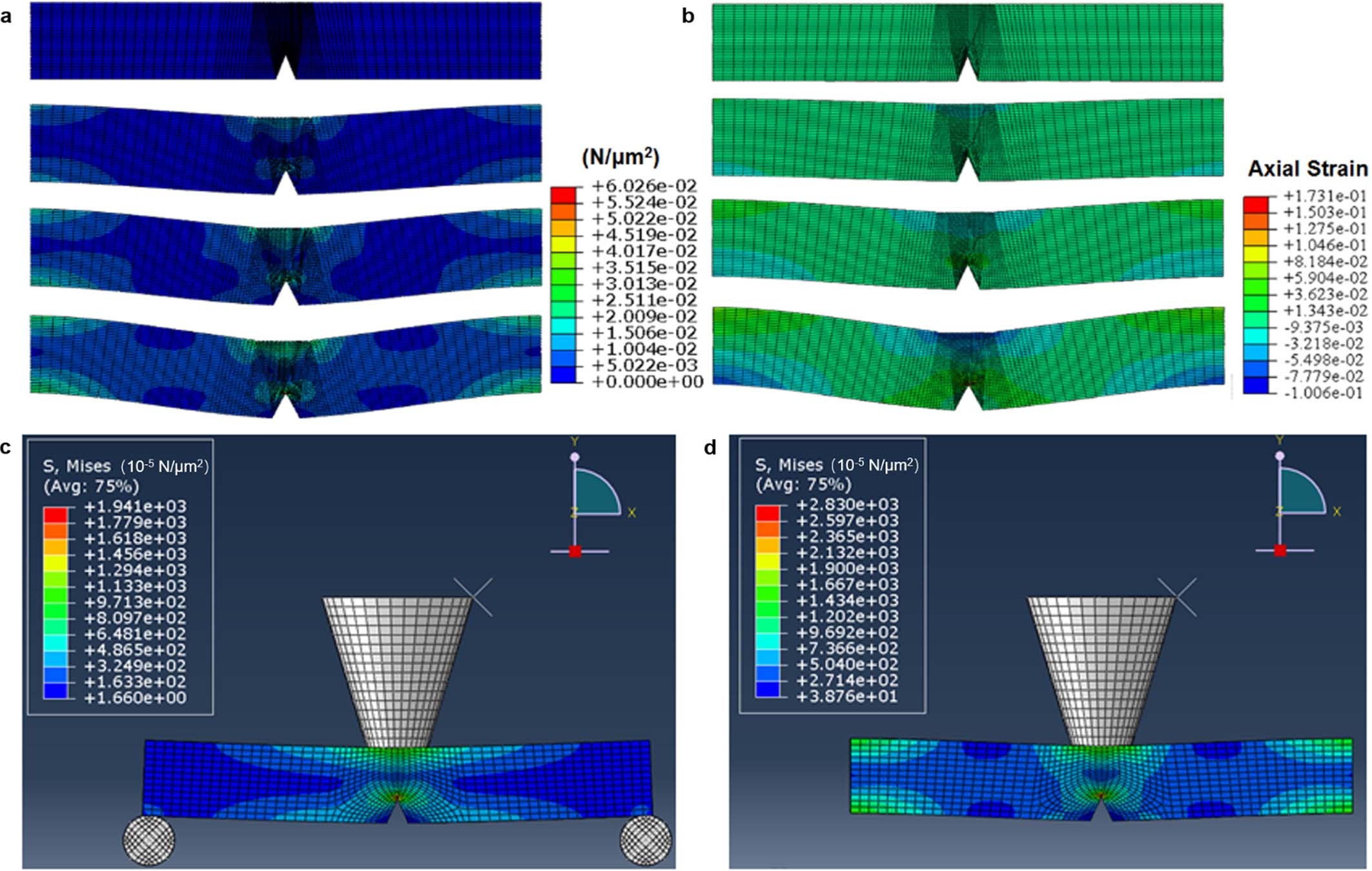

a, von Mises stress distribution in the bending test with increasing load. b, Axial strain distribution in the cantilever corresponding to a. c, The stress distribution in conventional SENB test with hinged ends. d, The stress distribution in our SENB test with fixed ends.
