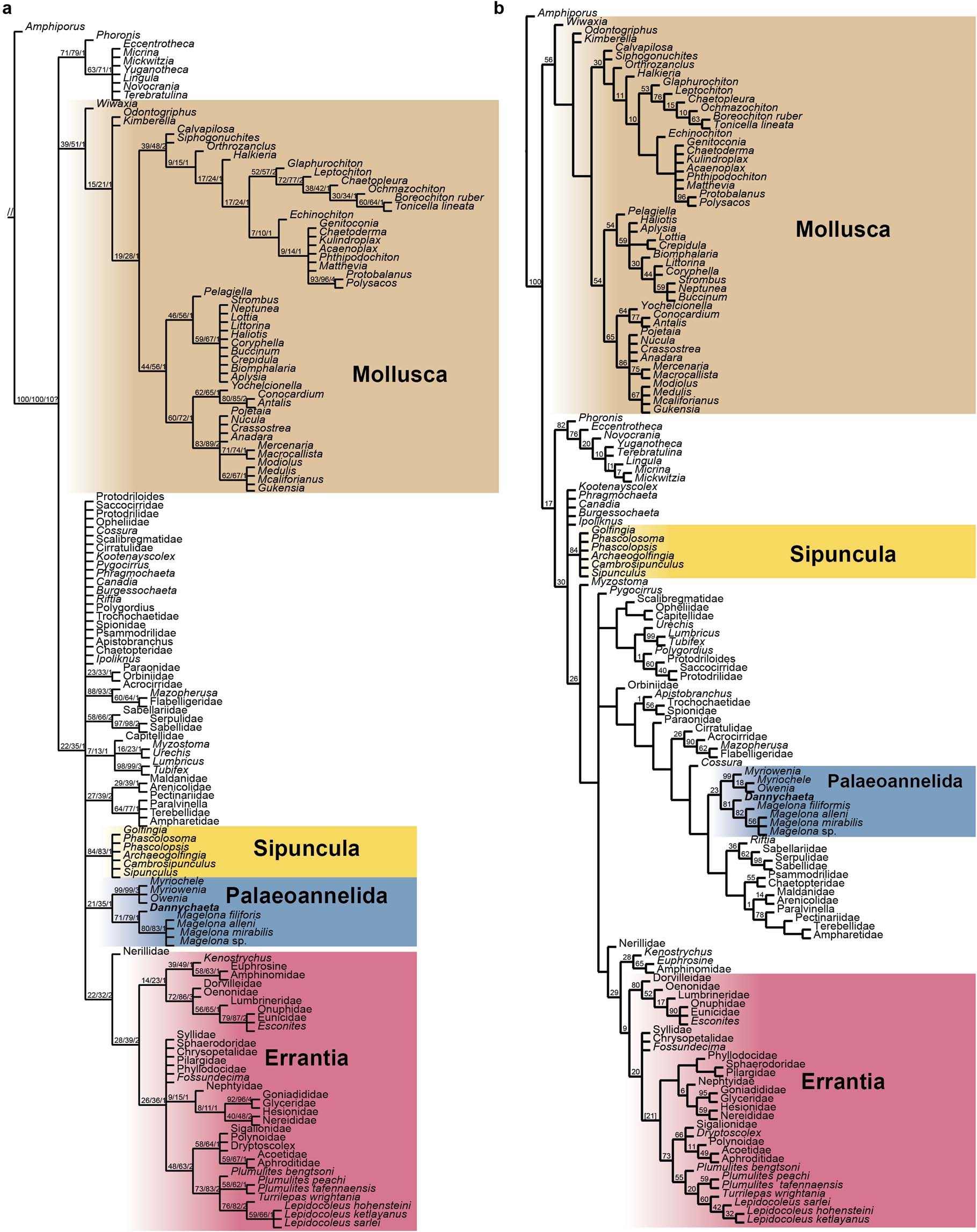

Extended Data Fig. 8: Results of parsimony analyses under equal and implied weighting.
From: A Cambrian crown annelid reconciles phylogenomics and the fossil record
a, Strict consensus tree (length 1,071) of parsimony analysis without topological constraints, numbers at the nodes are support from bootstrapping, jack-knifing and Bremer decay. b, Strict consensus of trees inferred using implied weighting with k = 10 (tree score 46.14190), numbers at the nodes are relative frequencies from symmetric resampling.
